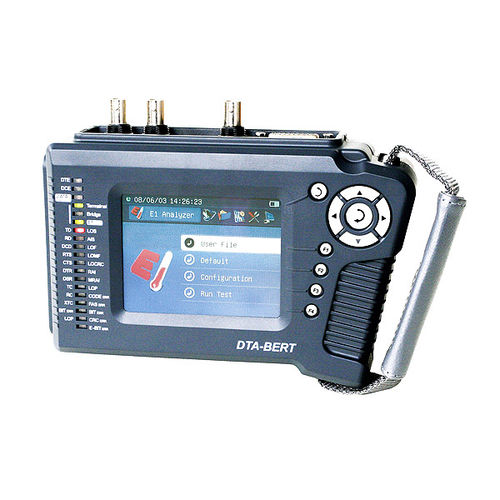

Monitoring analyzer DTA-BERT Series

communication networktransmittancecompact

DTA-BERT Series E1/Datacom Transmission Analyzer ●Loop back code setting and detection: In/Out band & ITU-T V.54 BERT histogram analysis ●DSO control loop codes (Optional): TIP/LSC/LBE/FEV (BERT/C, E1) ●Large TFT color LCD display: 320×240 (32 Characters ×8 Lines, text/graphic mode) ●Internal memory for test data storage ●Test report ●Print via Parallel/RS-232 port (Optional) ●Upgradeable for advanced features ●Portable for field application ●Rechargeable battery with low battery indicator DTA-BERT E1/Datacom Transmission Analyzer performs E1 transmission performance test (BERT) and status monitoring on data link (V.35, V.24/RS232, RS449, RS530, X.21). Model T can also perform G.703-64K bit error test, PCM31/30 test, and Jitter test. Featuring comprehensive functions, easy operation and compact design, DTA-BERT provides total solutions for E1 line analysis and maintenance. Connectivity: ● E1: RJ45 (balanced), BNC (unbalanced) ● Data: DB26 (female) ● Clock: PCM ● Printing: DB15 (female) ● Control/Data Transfer: USB
