Cobot RobotScan series

3-axisfor assemblypick-and-place

Overview
SHINING 3D Automation Solutions deliver high-efficiency, high-consistency 3D digitization for modern manufacturing. By integrating advanced 3D scanning technologies with a robot arm, controller base, and turntable, the solution provides end-to-end automated workflows for batch inspection, in-line measurement, quality control, and digital traceability.

RobotScan Series
RobotScan Series is engineered to replace manual operations with robotic automation. It enables fully automated and standardized 3D scanning to rapidly acquire precise geometric data and automatically generate detailed inspection reports. The system supports customized configurations for specific inspection requirements and integrates with MES systems for real-time feedback and secure data management, improving efficiency and quality in intelligent manufacturing.

Modular design — key capabilities

• Multi-System Integration
• High-Accuracy Full-Field 3D Measurement
• Streamlined Operation & Installation
• High Efficiency Inspection

Standard Automation Solutions
The standardized automation solution of RobotScan Series is designed to meet typical inspection demands in modern manufacturing. It supports both high-precision fringe projection scanners and handheld laser scanners.

Highlighted configurations and use cases

• RobotScan Q12 — Targets fine-detail components (airfoils, brackets, connectors, gears, housings, electronic components). Designed sensor for small-sized part measurement with complex surfaces or sharp edges. Suited for injection molding, die casting, investment casting and CNC parts. Offers automated optical 3D measurement with high repeatability and fringe projection technology for best accuracy and high-detail data.
• RobotScan UE Pro2 — Suited for small and medium sheet metal parts, casting housings, machining parts and mold components. Strong material adaptability (including black, shiny and reflective surfaces). Provides wireless and wired connectivity for flexible on-site installation. Uses handheld laser technology suitable for shopfloor environments with high accuracy and efficiency.
• RobotScan Combo+ — Cost-effective automated 3D scanning for batch inspection of small-to-medium castings and machined parts; supports mixed-size components such as covers, trim pieces, assemblies and medium casings.

Control & Inspection Software

• RobotScan Control — Professional automation software to control collaborative robot arms, servo turntables and 3D scanners. Enables complete workflow execution from path programming to 3D scanning and inspection via a process-oriented, intuitive interface to improve automation efficiency and stability.
• SHINING3D Inspect — Industrial inspection software (PTB-certified) that processes high-accuracy 3D scan data for detailed 3D comparison, measurement and inspection report generation. Delivers reliable, traceable inspection results that meet manufacturing quality-control requirements.

Customization and components
RobotScan Series offers fully customizable configurations including robotic arm (multiple brands and specifications), SHINING 3D metrology-grade scanners, turntables, fixtures, PLC systems, software modules and robot rails. Supported robot brands: Huayan Robotics; Universal Robots (UR); FANUC; DOBOT Robotics. Turntables and rails can be tailored for load capacity, diameter, rotation modes and working envelope to match specific production environments.

Automated 3D Scanning in action

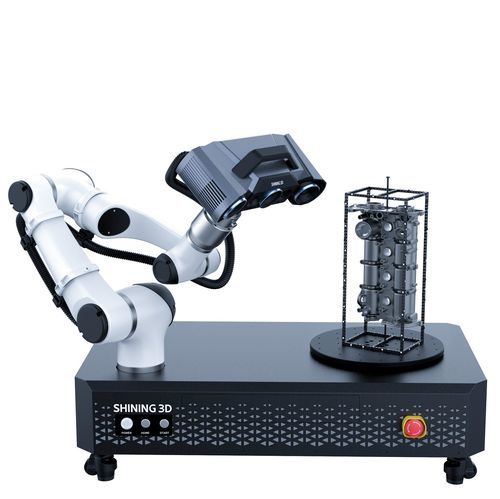

RobotScan combines a 3D scanner, robotic arm, controller base and turntable into a modular solution. Setup features automated calibration, visual programming for workflow creation, and options for loading/unloading systems to perform scanning and part handling without manual intervention.

Technical specifications

• Measurable object size: ≤ 500 mm
• Turntable load capacity: ≤ 20 kg
• Robot type: Cobot, Huayan Robotics
• Robot working radius: 800 mm
• Dimensions: 1030 × 670 × 270 mm
• Weight: 70 kg
• Power supply: 100 – 240V (Single-phase, 10A)
• Safe working space: 2400 × 2400 × 1600 mm
