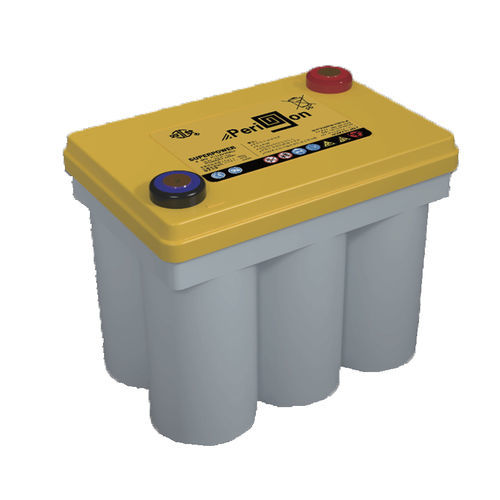

Lead battery 6-SPB series
ultra-thin12 Vfor UPS

lead battery
lead battery
lead battery
lead battery
lead battery
lead battery
lead battery
lead battery
lead battery
lead battery
lead battery
lead battery
lead battery
lead battery
Add to favorites
Compare this product


Characteristics

Type
lead
Configuration
ultra-thin
Voltage
12 V
Applications
for UPS, for telecommunications equipment
Connection type
M6
Standard
ISO
Load capacity

25 Ah, 40 Ah, 50 Ah, 75 Ah, 100 Ah

Length / diameter

203 mm, 239 mm, 256 mm, 263 mm, 302 mm
(8 in, 9.4 in, 10.1 in, 10.4 in, 11.9 in)

Width

138.5 mm, 168.5 mm, 173.5 mm, 178.5 mm, 204.5 mm
(5.45 in, 6.63 in, 6.83 in, 7.03 in, 8.05 in)

Height

158 mm, 162 mm, 204 mm
(6.2 in, 6.4 in, 8 in)

Weight

9.5 kg, 15 kg, 18 kg, 25 kg, 32 kg
(20.94 lb, 33.07 lb, 39.68 lb, 55.12 lb, 70.55 lb)

Description

Main Application Solar energy storage Smart grid Different standby power supply Benefits Applicable in -45°C ~ 75 °C The cycle life of 100% DOD reaches more than 350 times The designed float life is 15 years The time of high rate discharge is two times more than ordinary battery Technical Features With ultra-thin high purity lead frame design, a higher charge efficiency with trickle current is achieved With unique spiral wound design ,the dehydration and bulging deformation of the battery are avoided in high-temperature Excellent fast charging performance, more than 95% of electricity is gained within 40 minutes Good battery consistency, available more strings in parallel

Catalogs

6-SPB-75
6-SPB-75
2 Pages
6-SPB-40
6-SPB-40
2 Pages
6-SPB-100
6-SPB-100
2 Pages
