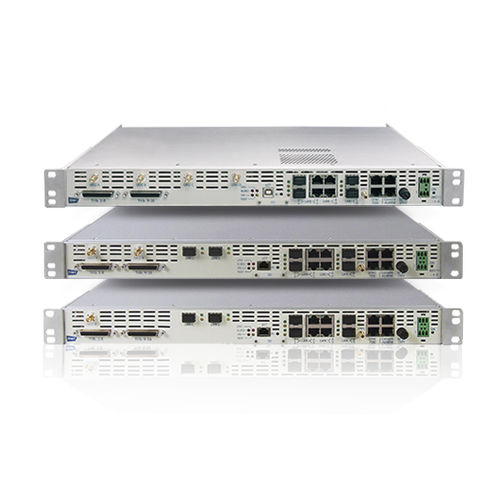

Radio module AGS20 series

AGS20 is the next Generation Indoor Unit for split Mount Radio, capable of addressing traditional split mount application with multiple IF radio, as well as aggregation of multiple all out door radio solutions, or a mix of the solutions. The indoor unit has different hardware variants to satisfy deployments from the highest compact solutions, to a modular fully redundant and easily scalable unit. Equipped with high capacity switch and multiple 10GbE ports AGS20 satisfies heavy duty sites. AGS20 IDU is equipped with a packet engine addressing MEF2.0 and IP/MPL services, with field proven records, including distribution of frequency and phase through the packet network. Integrated single unit Up to 4xIF integrated ports. Up to 2x10GbEth ports. 1RU Optimized configuration Single unit, with drawer expansion slot Up to 4xIF 6xGbE and 4x10GbEth ports 10GBE expansion slot 2RU Modular unit 2 RU high, 8 modular slots Up to 8xIF ports Up to 8x10GbEth ports protected 100Gb switching matrix Full hardware protection 4096QAM, 112MHz channel, 10W power One of the most compact units with <2L volume and 10W power consumption, benchmarking solution. One of the most compact units with <2L volume now supporting dual carrier configuration for 2GBPS transport capacity in a single unit (ACCP) Highly compact solution supporting up to 4 carrier configuration for 4Gb transport capacity in a single unit (ACCP;ACAP;CCDP) Offering extra power compared to the standard ASNK for higher system gain performances Offering extra power compared to the standard ASNK for extended performances.
