Monitoring acoustic transducer t066-HT

outdoorsurfacestainless steel-housed

Product overview

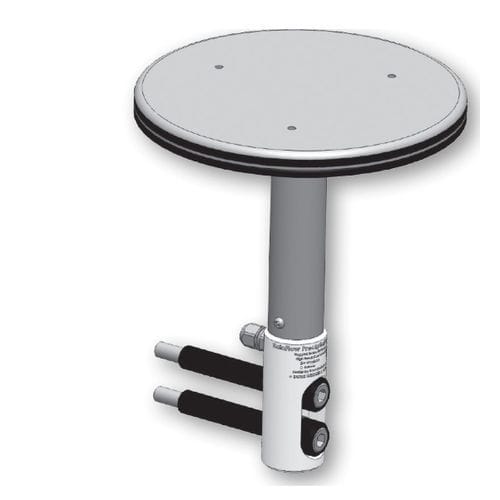

The T066-HT hail sensor is a very low-power, maintenance-free, fully sealed acoustic detector with no moving parts. It detects hailstones from 0.5 to 7.5 cm in diameter and is designed to withstand extreme hail events. The sensing element is a three-layer polished stainless-steel disc mounted on an unbreakable stainless-steel arm. Impacts of hailstones (or other lithometeors with similar kinetic energy) generate measurable changes in internal acoustic pressure.

Outputs and communication

• Continuous or pulse analog voltage outputs
• SDI-12 communication support
• Serial RS-232 support
• Fully configurable via Plug-and-Play PC connection or remotely using serial commands

Included

• Mounting kit
• 3 m signal cable

Technical specifications

• Model: T066-HT
• Type: Acoustic hail transducer
• Detection range (hail diameter): 0.5–7.5 cm
• Power consumption: very low
• Design: maintenance-free, fully sealed, no moving parts
• Sensing element: three-layer polished stainless-steel disc
• Support arm: unbreakable stainless-steel arm
• Detection principle: acoustic measurement (internal acoustic pressure variation)
• Outputs: continuous or pulse analog voltage
• Communication protocols: SDI-12 and RS-232
• Configuration: Plug-and-Play PC connection or remote serial commands
• Supplied with mounting kit and 3 m signal cable
