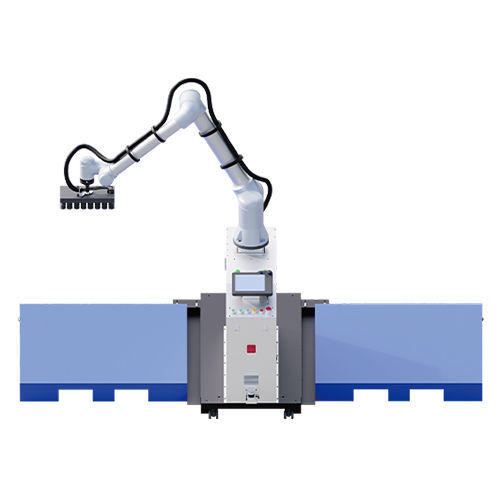

Robotic palletizer workstationsmallmedium-speed
Add to favorites
Compare this product
Characteristics
- Type
- robotic
- Product applications
- workstation
- Other characteristics
- medium-speed, small
- Throughput
Min.: 360 p/h
Max.: 480 p/h
- Pallet width
1,000 mm
(39.37 in)- Pallet length
1,200 mm
(47.24 in)- Maximum palletizing height
Min.: 1,600 mm
(62.99 in)Max.: 2,400 mm
(94.49 in)- Machine length
1,500 mm
(59.06 in)- Machine width
2,100 mm
(82.68 in)- Electric powered
Min.: 100 V
Max.: 220 V
Description
Product overview
Palletizing workstation for small-to-medium throughput lines. Max payload 25 kg, working efficiency 6-8 boxes/min and working radius 1800 mm. Footprint: 1500 mm × 2100 mm. Designed for palletizing boxes onto 1200 mm × 1000 mm pallets; optional lifting column increases maximum palletizing height to 2400 mm.
Key features
Technical specifications
Working radius: 1800 mm
Work efficiency: 6-8 boxes/min
Payload: 25 kg
Floor space: 1500 mm × 2100 mm
Palletizing height: 1600 mm (including pallet height 1200 mm × 1000 mm); MAX: 2400 mm (with lifting column)
Rated power: 1500 W
Power supply: 100~220 V AC
Lifting column: lifting height 800 mm
Application scenario
Technical details
Palletizing workstation for small-to-medium throughput lines. Max payload 25 kg, working efficiency 6-8 boxes/min and working radius 1800 mm. Footprint: 1500 mm × 2100 mm. Designed for palletizing boxes onto 1200 mm × 1000 mm pallets; optional lifting column increases maximum palletizing height to 2400 mm.
Key features
- Working radius: 1800 mm
- Work efficiency: 6-8 boxes/min
- Effective payload: 25 kg
- Floor space: 1500 mm × 2100 mm
Technical specifications
Working radius: 1800 mm
Work efficiency: 6-8 boxes/min
Payload: 25 kg
Floor space: 1500 mm × 2100 mm
Palletizing height: 1600 mm (including pallet height 1200 mm × 1000 mm); MAX: 2400 mm (with lifting column)
Rated power: 1500 W
Power supply: 100~220 V AC
Lifting column: lifting height 800 mm
Application scenario
- Palletizing
Technical details
- Palletizing height: 1600 mm (including pallet height 1200 mm × 1000 mm); MAX: 2400 mm (with lifting column)
- Payload: 25 kg
- Working radius: 1800 mm
- Work efficiency: 6-8 boxes/min
- Floor space: 1500 mm × 2100 mm
- Rated power: 1500 W
- Power supply: 100~220 V AC
- Lifting column height: 800 mm
