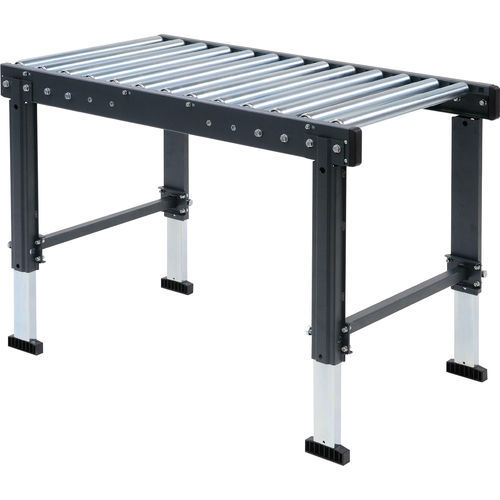

Roller conveyor ST series

handlingaccumulationgravity

Product
Conveyor
Idle-roller conveyor for gravity material handling and accumulation in packaging and production lines.

Key features

• Three widths available: 500 mm, 650 mm, 800 mm
• Three standard lengths: 375 mm (04), 970 mm (1), 1950 mm (2)
• Standard pitch option: 75 mm
• Only 375 mm length units do not require legs

Adjustable legs (ST) for RG Ø 32 mm conveyors

• ST‑55: widths 500 / 650 / 800 mm; height range Min. 380 mm — Max. 550 mm
• ST‑83: widths 500 / 650 / 800 mm; height range Min. 520 mm — Max. 830 mm
• ST‑120: widths 500 / 650 / 800 mm; height range Min. 800 mm — Max. 1230 mm

Example
RG04-37.5/500: metal roller / 375 mm length / 37.5 mm pitch / 500 mm width.

Ideal for industries

• Wine & Spirits
• Household, Consumer & Personal Care
• Food & Dairy
• Pharmaceutical industry
• Logistics
• E‑commerce

Technical specifications

• Product type: Idle-roller conveyor
• Roller diameter: RG Ø 32 mm
• Available widths: 500 mm, 650 mm, 800 mm
• Available lengths: 375 mm (04), 970 mm (1), 1950 mm (2)
• Pitch options: 75 mm (example model RG04-37.5/500 indicates a 37.5 mm pitch variant)
• Legs: 375 mm conveyors do not require legs; adjustable legs available (ST-55, ST-83, ST-120) with specified height ranges
