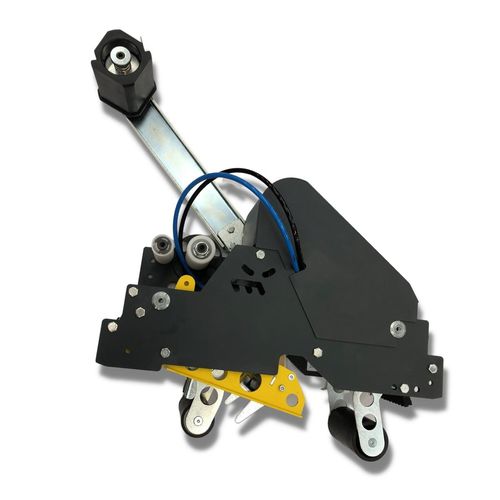

Taping machine VENTO™ series

Product overview
Vento™ 50–75 is SIAT’s pneumatic taping unit designed to reliably seal under-filled or damaged cartons without accidental tape cuts or adhesion failures. It applies PVC, PP and paper tapes from 50 to 75 mm and maintains consistent sealing performance even on cartons with holes or insufficient fill. Rated for speeds up to 30 m/min (100 fpm), the unit supports high-throughput packaging lines while reducing tape waste and stoppages.

Advantages

• Manages under-filled and holed boxes to ensure correct tape adhesion
• Prevents accidental tape cutting during application to avoid rework
• Precise roller pressure adjustment via pneumatic cylinder and pressure regulator
• Designed for easy maintenance with accessible wear parts

Key features

• Handles under-filled or open boxes: ensures smooth tape application on cartons that are not completely filled or have holes, preventing adhesion issues or accidental cuts
• Multi-tape compatibility: supports PVC, PP and paper tapes from 50 to 75 mm width
• High-speed performance: suitable for packaging lines up to 30 m/min (100 fpm)
• No-Cut system: prevents tape from being cut during sealing, ensuring continuous application
• Fine roller strength adjustment: pneumatic cylinder with pressure regulator for accurate settings

Leg dimensions (mm)
30 / 50 / 70 ± 5

Options

• Tape end/break detection device — disk with photocell output for machines with logic input
• Filament tape kit — for processing higher-strength filament tapes

Ideal for

• Food & Dairy
• Pharmaceutical industry
• Logistics and distribution
• E‑commerce fulfilment

Technical specifications

• Type: pneumatic taping unit
• Model commercial name: VENTO™
• Tape compatibility: PVC, PP and paper tapes
• Tape width: 50 – 75 mm
• Maximum speed: up to 30 m/min (100 fpm)
• No-Cut system to prevent tape cutting during sealing
• Roller strength adjustment: pneumatic cylinder with pressure regulator
• Maintenance: easy access to wear parts
• Options: tape end/broken detection disk with photocell signal; filament tape kit
• Leg dimensions: 30 / 50 / 70 mm ± 5 mm
• Recommended industries: e‑commerce, food & beverage, logistics, consumer goods
