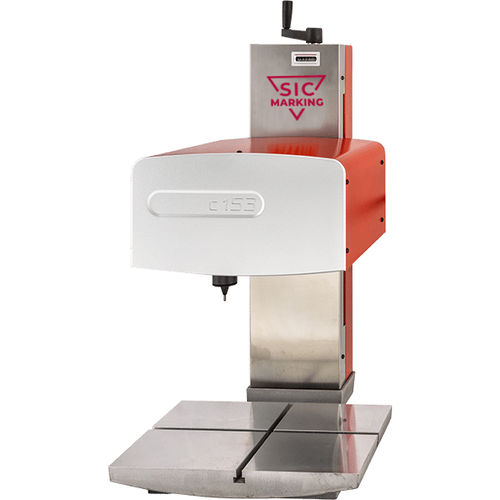

Dot peen marking machine C 153
electromagneticmetalbenchtop

dot peen marking machine
dot peen marking machine
dot peen marking machine
dot peen marking machine
Add to favorites
Compare this product


Characteristics

Technique
electromagnetic, dot peen
Material
metal
Configuration
benchtop
Applications
for metal
Other characteristics
high-speed, 2D data matrix, Ethernet
Power

300 W
(0.41 hp)

X travel

160 mm
(6 in)

Y travel

100 mm
(4 in)

Depth

Min.: 0 mm
(0 in)

Max.: 0.5 mm
(0 in)

Description

The C153 is a COLUMN-MOUNTED DOT PEEN MARKING MACHINE, i.e. a machine that slides on a vertical axis to adjust the position of the marking head. It is particularly suitable for marking SMALL AND MEDIUM SIZE PARTS that are placed directly under the marking head. The C153 is a FAST MACHINE DESIGNED FOR INTENSIVE USE. THE MACHINE IS PARTICULARLY ROBUST WITH A CAST ALLOY BASE AND A STRENGTHENED COLUMN. It has an integral meter that facilitates the setting of the marking distance when parts are changed. The wide marking window of 160 x 100 mm, allows this machine to mark on a large surface. The LED lighting system facilitates marking when indoor light is insufficient. It only needs an electrical power supply. Dot peen marking technology with electromagnetic control enables parts with various shapes and surface finishes to be marked: plane, concave, convex, circular, raw and machined surfaces. The tungsten carbide stylus deforms the material by executing a series of indents in the surface to be marked. The C153 can engrave alphanumeric text, logos, 2D Data Matrix codes or QR codes. It only needs an electrical power supply.
