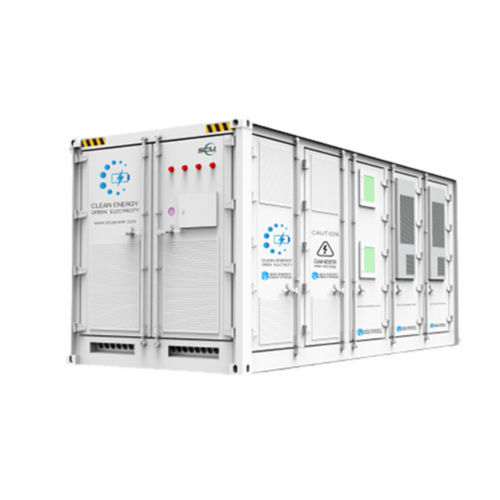

Industrial container BRES series

for industrystoragemetal

Overview
Adding Containerized Battery Energy Storage System (BESS) to solar, wind, EV charger and other renewable energy applications can reduce energy costs, minimize carbon footprint and increase energy efficiency. Get ahead of the energy game with SCU!

What is energy storage container?
SCU uses standard LFP battery modules or immersion liquid-cooled battery modules, PCS modules, BMS, EMS and other systems to form standardized containers to build large-scale grid-side energy storage projects. The standardized and prefabricated design reduces user customization time and construction costs and reduces safety hazards caused by local installation differences and management risks. It meets the application needs of regional power grid peak shaving, frequency regulation, voltage regulation, emergency response, new energy consumption, etc., and ensures the normal operation of the power system.

Application

• Commercial & Industrial storage: Reduced energy costs in areas with big peak-to-valley price differences or negative prices.
• Microgrid system: Solar, storage and diesel generator combined microgrid used in areas without electricity.
• Solar Storage Charging: Integrate solar, storage and charging stations to provide more green and low-carbon energy.
• Mobile power supply: On the construction site where there is no grid power, mobile energy storage is used for power supply.
• Backup Power: During a power outage, stored electricity can be used to continue operations without interruptions.

BESS Container Features

• Safe and reliable: Maximum safety utilizing LFP battery (LiFePO4) or immersion liquid-cooled battery combined with an intelligent 3-level battery management system (BMS). Module built-in fire suppression measures, intelligent container level fire suppression system, hierarchical linkage and multi-layer protection. IP54 protection cabinet for safe and reliable operation in harsh environments.
• Intelligent and efficient: Efficient, digital and intelligent energy management system (EMS) architecture design. 0.5C charging and discharging rate. Fault prediction, identification and rapid location. Plug & Play lithium-ion battery storage container with various usage scenarios for on-grid, off-grid and micro-grid.
• Highly integrated: All-in-one containerized design complete with LFP battery, bi-directional PCS, isolation transformer, fire suppression, air conditioner and BMS. Modular designs can be stacked and combined for easy capacity expansion and convenient maintenance. Standardized 10ft, 20ft and 40ft integrated container options.

BESS container product

• BRES-240-125
  Battery capacity: 241 kWh
  PCS capacity: 125 kW
  Size: 1600*1330*2250 (W*D*H) mm
• BRES-1040-500
  Battery capacity: 1040 kWh
  PCS capacity: 500 kW
  Size: 10ft, 2.991*2.438*2.896 (W*D*H) m
• BRES-2080-1000
  Battery capacity: 2080 kWh
  PCS capacity: 1000 kW
  Size: 20ft, 6.058*2.438*2.896 (W*D*H) m
• BRES-4160-2000
  Battery capacity: 4160 kWh
  PCS capacity: 2000 kW
  Size: 40ft, 12.192*2.438*2.896 (W*D*H) m

Specifications of Energy Storage Container (table rows)
Technical Specifications | BRES-240-125 | BRES-1040-500 | BRES-2080-1000 | BRES-4160-2000
Rated Power | 125 kW | 500 kW | 1000 kW | 2000 kW
Rated Voltage | 400V | 400V | 400V | 400V
Rated Current | 189 A | 724 A | 1449 A | 2898 A
Energy Capacity | 241 kWh | 1040 kWh | 2080 kWh | 4160 kWh
Rated Frequency | 50/60 Hz (all models)
Frequency Range | ±2 Hz (all models)
Output Configuration | 3W+N+PE (all models)
Power Factor | -1 ~ +1 (all models)
AC Current THD | <3% (Rated Power) (all models)
Weight | 2500 kg | 13000 kg | 26000 kg | 48000 kg
Dimensions (W*D*H) | 1600*1330*2250 mm | 2.991*2.438*2.896 m | 6.058*2.438*2.896 m | 12.192*2.438*2.896 m
Voltage Range | -15% ~ +10% (all models)
Rated Battery Voltage | 768 V (BRES-240-125) | 832 V (other models)
Battery Voltage Range | DC 672V - DC 876V (2.8V~3.65V) (BRES-240-125) | DC 728V - DC 949V (2.8V~3.65V) (other models)
Battery Chemistry | LFP (all models)
Cycle Life | ≥6,000 Cycles (0.5P, 25±2℃, 100% DOD, 80% SOH) (all models)
Operating Temperature | -20℃ to 55℃ (Derating above 45℃) (all models)
Storage Temperature | -30℃ to 60℃ (BRES-240-125) | -20℃ to 60℃ (other models)
Relative Humidity | 0-95% RH, Non-Condensing (all models)
Operating Altitude | 4000 m (Derating above 2000 m) (all models)
Noise Level | <75 dB (all models)
Communication Interface | RS485, LAN (all models)
Protection Rating | IP54 (all models)
Fire Suppression | Aerosol (all models)

Caractéristiques / spécifications techniques

• Series name: BRES series (models: BRES-240-125, BRES-1040-500, BRES-2080-1000, BRES-4160-2000)
• Rated power: 125 kW / 500 kW / 1000 kW / 2000 kW (per model)
• Rated voltage: 400 V
• Rated current: 189 A / 724 A / 1449 A / 2898 A (per model)
• Energy capacity: 241 kWh / 1040 kWh / 2080 kWh / 4160 kWh (per model)
• Battery chemistry: LFP (LiFePO4)
• Rated battery voltage: 768 V (BRES-240-125) / 832 V (other models)
• Battery voltage range: DC672V-DC876V (BRES-240-125) / DC728V-DC949V (other models)
• Cycle life: ≥6,000 cycles (0.5P, 25±2℃, 100% DOD, 80% SOH)
• Charging/discharging rate: 0.5C
• Operating temperature: -20℃ to 55℃ (derating above 45℃)
• Storage temperature: -30℃ to 60℃ (BRES-240-125) / -20℃ to 60℃ (other models)
• Relative humidity: 0-95% RH, non-condensing
• Operating altitude: up to 4000 m (derating above 2000 m)
• Noise level: <75 dB
• Communication: RS485, LAN
• Protection rating: IP54
• Fire suppression: aerosol-based module and container-level systems
• Output configuration: 3W + N + PE, power factor -1~+1, AC current THD <3% at rated power
• Standard container sizes: 10ft, 20ft, 40ft; modular, stackable, prefab design for easier installation and expansion
