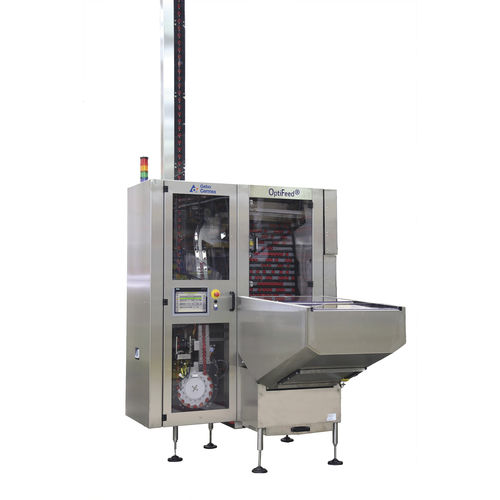

Vertical feeder Optifeed®
automaticcapcapping machine

vertical feeder
vertical feeder
vertical feeder
vertical feeder
vertical feeder
vertical feeder
vertical feeder
vertical feeder
vertical feeder
vertical feeder
vertical feeder
vertical feeder
Add to favorites
Compare this product


Characteristics

Type
vertical
Operating mode
automatic
Product applications
cap, capping machine, capsule
Other characteristics
modular, high-rate

Description

TOP 3 BENEFITS: • 100% reliability thanks to integrated vision control • No air: low power consumption, high hygiene, low noise level • Easy integration PRODUCT INFORMATION When it comes to your closure feeding, you can put your mind at rest with OptiFeed®! Applicable for both low and high speeds, and offering optimum reliability at high speeds, OptiFeed® is a 4-in-1 solution combining cap storage, orientation, control and elevation to feed your capper with 100% compliant closures. OptiFeed® is a simple solution for fast and easy integration, as it is both modular and customizable. Its footprint is reduced by up to 75%, and yet operators get full access to all mechanical and electrical parts for maintenance and cleaning. Finally, for ease of installation, OptiFeed® is shipped standing up. OptiFeed® control systems The OptiFeed® control system integrates mechanical and vision devices to automatically detect and reject non-compliant closures without stopping the flow of closures. Securing line efficiency • Upside down closures • Oval closures Preserving product quality • Damaged tamper evident band • Color • Seal integrity • Foreign bodies Technical specifications • Customizable: discharge side, height up to 6.2 meters, automation PLC • Simple integrated solution, limited number of ancillary equipment and interfaces • Easy hopper filling • Simple speed bump adjustment for fast changeovers Performance • No air, mechanical discharge • Low power consumption: 1kWh • High hygiene • Low noise emission
