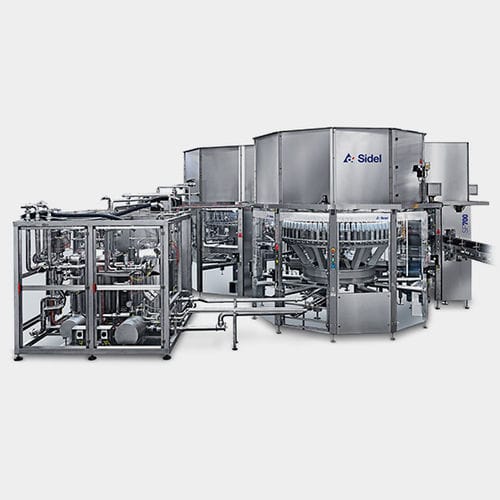

PET bottle filler Matrix SF700 FM

beverageteafruit juice

With its magnetic flow meter, the Sidel Matrix™ Filler SF700 FM is able to fill PET bottles with still, pulpy beverages or those containing particles with the utmost precision and reducing beverage waste. The Sidel Matrix filler SF700 offers the highest standards of hygiene and operational reliability during filling. This ensures it can meet the production demands of fresh, sensitive and natural beverages. The Sidel Matrix hot filler features electronic filling valves equipped with individual flow meters that ensure precise filling volumes while minimising product wastage. The flow rate from the tank to the filling valve can be easily controlled without any stress on the product, as any turbulence remains in the tank. Dual-speed filling eliminates foam generation while dual-stream dosing ensures that pulp or particles are delivered accurately and consistently. The design of Sidel Matrix hot filler and its contactless filling valves optimises product safety throughout the packaging process. • No contact between bottle and filling valve avoids cross contamination • Dual-speed filling avoids generation of foam • Low product recirculation allows keeping high beverage quality • Grid valve for still beverages, and plunger valve for pulpy beverages • Integrated Slurry Doser (ISD) configuration: double stage filling for beverages containing particles Top product quality • Integrated and separate electro-pneumatic components • No vertical movement of the bottles • External beverage tank • Contactless filling • Reduced filler environment under positive pressure (HEPA filters) • CIP automatic dummy cups
