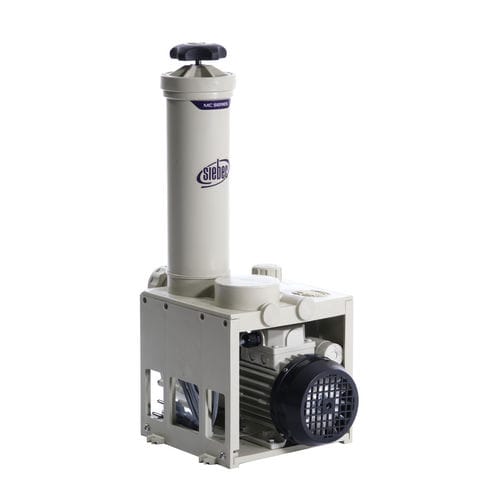

Filter pump MC 15
for industrial wateroilwith electric motor

filter pump
filter pump
filter pump
filter pump
filter pump
Add to favorites
Compare this product


Characteristics

Fluid
for industrial water, oil
Operation
with electric motor
Priming
normal priming
Technology
impeller
Mobility
stationary
Domain
industrial, chemical
Material
plastic, polypropylene, PVDF
Other characteristics
compact, flow, filter, with integrated filter
Flow

Max.: 4 m³/h
(141.25867 ft³/h)

Min.: 1.5 m³/h
(52.972 ft³/h)

Power

180 W
(0.24 hp)

Fluid temperature

110 °C
(230 °F)

Width

378 mm
(14.88 in)

Height

819 mm
(32.24 in)

Description

This compact filter offers a flow rate of 1.5 to 4 m³/h on 1 or 2 filtration tanks (10" or 20"). It is available in 2 materials: polypropylene (PP) or PVDF for high temperatures up to 110°C. Excellent chemical resistance Available in polypropylene or PVDF, this filter is resistant to both acids and bases. Long-lasting design Our extremely strong plastic welding method eliminates the need for gaskets, eliminating the risk of leakage. Pump Protection The filter holder protects the pump from splashes of potentially corrosive fluids, thus extending its life. Improved ergonomics The bayonet lock lid opens and closes with one hand. Exclusive modularity Series or parallel Possibility of configuring the filtration tanks in series or parallel according to your needs. Multi-tank version Double the filtration capacity by opting for the multi-tank version, available in 10 and 20 inches.
