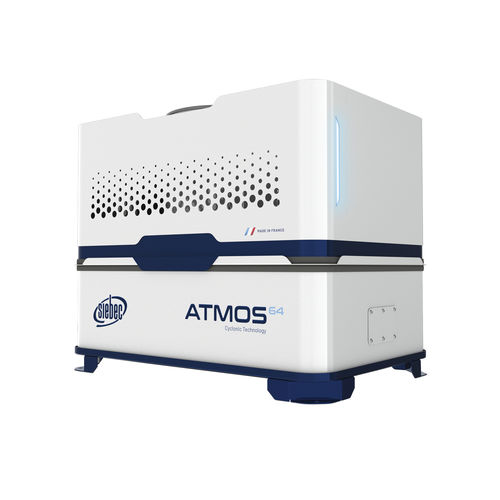

Oil mist filter ATMOS 64

airoilfume

The ATMOS provides a healthier working environment and allows the recovery of large quantities of cutting oil, otherwise lost through evaporation. Very high energy efficiency Our R&D team has developed a silent 500 m3/h module with 64 cyclones High-performance cyclonic separation The patented multi-cyclone technology alone removes over 99% of the oil contained in the intake air! The cyclonic effect forces oil droplets against the walls at very high speed. As they clump together, the droplets form a body heavy enough to fall back into the lubricant tank by gravity, while the cleaned air is expelled upwards through the heart of the cyclone. Eliminate harmful particles from your working environment at reduced cost The final filtration stage, consisting of one to three HEPA 13 filters, ensures that the air exhausted by the appliance is clean. The HEPA 13 class requires the filter to pass only 50 particles of 0.1 micron per litre of exhaust air. Thanks to cyclonic separation, the life of the HEPA cartridge is significantly extended, reducing recurrent consumables costs. Ensure optimum operation Light bars on the bonnet indicate the current status of the unit to ensure it is operating correctly. An intuitive colour code tells the operator when it’s time to change the HEPA 13 filter or if the ATMOS™ is experiencing a malfunction.
