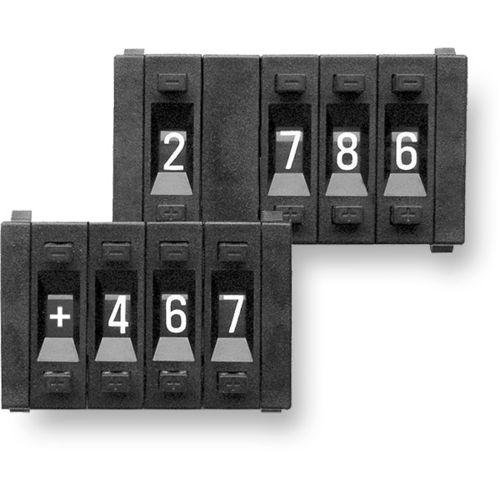

Key lock push-button switch P76 series

thermoplasticDCdual

Coding switches of any number of characters can be combined with the modules of the P76 series. Dual push actuation - large easily legible digits – block mounting via integrated clamping pins – optionally with decoupling diodes. Electrical rating (resistive load): 0,1 A, 50 V AC, 28 V DC Maximum current (non switching): 1 A Contact resistence: max. 0,2 Ω Isolation resistence: 103 MΩ Dielectric strenght: 500 V Lifetime (electrical rating) 200.000 switch operations Operating temperature: -20...65 °C Housing: Thermoplast, Black
