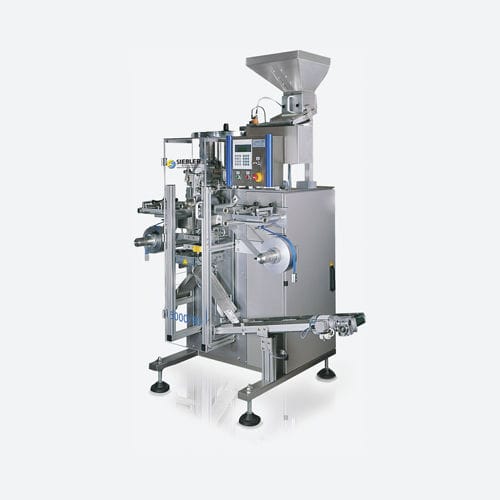

Continuous heat sealer 5000

automaticpackagingfilm

Vertical Strip packaging machine for the packing of tablets, capsules, oblongs and hardware Beschreibung • Vertical Strip packaging machine for the packing of tablets, capsules, oblongs and hardware • Machine execution in three sizes corresponding to the required working width: • 5400/90, 5400/160, 5400/320 Working mode Continously running sealing rollers, four sides sealing Execution according to GMP rules Foil width 90 mm (5400/90), 160 mm (5400/160), 320 mm (5400/320) Film quality all heatsealable films (not pure polyethylene), such as laminates, coated paper, aluminium and cellophane Output up to 150 cycles per min., depending on product Control PLC B&R Current 400/3/N/PE, ca. 7 kVA, 50 Hz (optional 60 Hz) Air consumption min. 6 bar, approx. 80 – 120 NL Weight approx. 500 kg up to 1.200 kg depending on machine size
