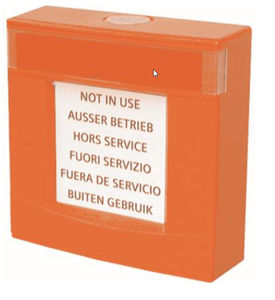

Fire alarm manual call point FDM223

with glass breakerresettableaddressable

Product description
For immediate manual actuation of a fire alarm. Suitable for indoor and outdoor use. Designed for surface- and recess-mounted cable entry in easily accessible locations. Indirect alarm actuation by breaking the glass insert and pressing the pushbutton. To replace the glass insert, open the housing door with the key. The pushbutton must be reset before closing the door again. The manual call point comprises a red housing with glass insert, key, switching unit and 2 labels (standard: house and Feuerwehr).

Product identifiers
Product No.: FDM223
Stock No.: A5Q00008098
GTIN: 4047625039486

Documents available

• Data sheet
• Technical specification
• VdS certificate (FDM223)
• Certificate of constancy of performance (FDM223)
• LPCB certificate (FDM221 / FDM223 series)
• EC declaration
• Declaration of Performance
• Environmental Product Declaration

Accessories

• M20X1.5MSVER — Screwed cable gland M20 x 1.5
• DMZ1197-AC — Protective cover
• DMZ1197-AD — Protection seal

Technical specifications

• Operating voltage: DC 12…33 V
• Operating temperature: -25…70 °C
• Protection category: IP41; IP64 with protection seal
• Relative humidity: ≤95 % rel. (no condensation)
• Standards: EN 54-11, EN 54-17
• Dimensions (W x H x D): 134 x 134 x 43 mm
• Quiescent current: 200 μA
• Storage temperature: -30…+75 °C
• Communication protocol: FDnet / C-NET
• Color: Flame red, ~RAL 3000
• External alarm indicator: 2
• System compatibility: FDnet -> FS20, AlgoRex, SIGMASYS; C-NET -> FS720
• Number of addresses: 1
