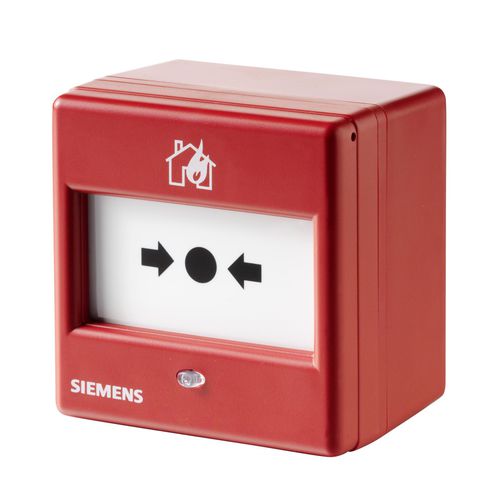

Fire alarm manual call point FDM275

radiowirelessresettable

Product description
Radio manual call point Type A. The alarm is activated directly by pressing the plastic insert. The device comprises a front section with radio electronics and a dual‑band antenna and a rear housing where the battery pack (ordered separately) is installed. A key is used to reset the call point and restore operational readiness.

Identifiers

• Product No.: FDM275
• Stock No.: S54323-F105-A1
• GTIN (EAN): 4047625040215

Documents (titles)

• Installation Instructions - Radio manual call point FDM275
• VdS Certificate - FDM275
• EC Declaration - FDM275
• Declaration of Performance - FDM275
• Environmental Product Declaration - FDM275, FDM275(F)

Accessories (selection)

• FDMC295 - Protective cover
• FDMG295 - Glass insert (neutral)
• FDMP295 - Plastic insert (neutral)
• FDMK295 - Replacement key
• BAT3.6-10 - Battery pack 3.6 V, 10 Ah (order separately)

Features / Technical specifications

• Standards: EN 54-11 (Type A indoor), EN 54-25, EN 300220-2
• Radio frequency: 868–870 MHz (SRD band) and 433–435 MHz
• Channel width: 50 kHz
• Transmission distance: In building: max. 180 m; Open air: max. 1000 m
• Transmitting power: Typ. 10 mW ERP (max. ≤25 mW)
• Operating temperature: -10 to 55 °C
• Supply voltage: Battery pack with AA 3.6 V lithium cells
• Transmitter/receiver antenna: Dual‑band antenna
• Protection category: IP24D
• Relative humidity: ≤95 % rel.
• Color: Flame red, approx. RAL 3000
• Communication protocol: FDnet/C‑NET
• Dimensions (W x H x D): 87 x 87 x 63 mm
• Number of addresses: 1
