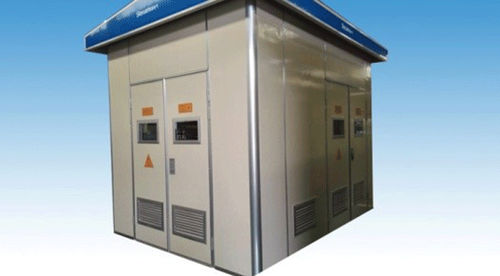

Power factor compensator

1) The box capacitor compensation device is consisted of shunt capacitors, series reactor, discharge coil, Zinc oxide arrester, and earthing switch etc. 2) It is connected of capacitors with security fence according to electrical requirement, and placed on the steel frame. It is convenient for overall transport and installation. 3) It could be designed in different ways according to user requirements. Environment　　 1) Altitude：≤ 2000m 2) Ambient temperature：-50~55℃ 3) Installation site：Indoor or outdoor 4) The installation and operation site should be no conductive or explosive dust, no harmful gas and vapor, no tense mechanism shake. Product characteristics 1) Safe and reliable operation, long lifetime. 2) Modular and building block structure, convenient for overall transport and installation. 3) Designed in different combinations according to detail requirement of customer. 4) Improve power grid voltage quality Application It is used in 50Hz, 6kV, 10kV, 35kV, three phase AC system to reduce loss, improve power quality and power factor.
