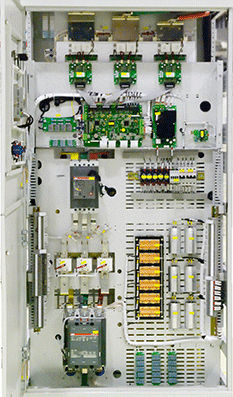

Static VAR generator QNSVG

Sieyuan QingNeng Low Voltage Static Var Generator (QNSVG) is applicable for 380-660V voltage system, it takes a very important role in the Flexible Alternative Current Transmission Systems(FACTS), it’s like a controllable reactive current source when parallel connect with the grid, it’s reactive current can follow the changes of burden and quickly response the corresponding value in order to compensate the reactive power in the system. In this case the power factor of the system can be approximate 1, so QNSVG can realize the stabilize voltage, energy save and ensure power system security functions. Operating Environment: Ambient Temperature: -20℃~40℃ Store Temperature: -25℃~55℃ Humility: 95% Altitude: Not exceed 2000m Product Characteristic 1. Continuous, dynamic reactive power compensation The QNSVG can not only compensate inductive reactive power, but also the capacitive reactive power; it overtake the switch capacitor product’s shortcoming like cannot dynamic compensate reactive power, the compensation volume influenced by the voltage. So compare with the switch capacitor product, QNSVG can reduce power loss and save energy. 2. Eliminate harmonic current This product is capable of eliminate harmonic current, when providing the dynamic reactive power, at the same time the remaining power can effectively retrain the 2-13th harmonic current . it play a significant role in establishing the green energy. 3. Reduce the voltage dip The QNSVG can quickly response the burden change of grid within 1ms, it can completely solve the voltage dip caused by the large load equipments frequent starting.
