Voltage switchgear

Primary current: 630, 1,250 A
VAC: 12 kV

HXGT6B-12 environmental protection gas insulated metal enclosed ring network switchgear The HXGT6B-12 type ring main unit is the latest high-performance, green and environmentally friendly 12kV intelligent ring main ...

Primary current: 3,150, 2,500 A
VAC: 126 kV

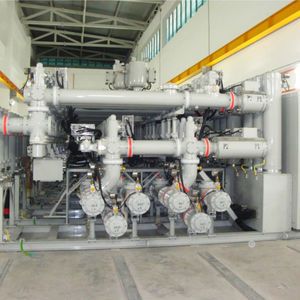

ZF41B-126 gas-insulated metal-enclosed switchgear (GIS) is a high-tech product developed by Tianan Electric with the introduction of Russian Lenin Institute of Electrical Engineering (VEI) mature technology for localized ...

Primary current: 630 A - 3,150 A
VAC: 3 kV - 35 kV

... Metal-enclosed Switchgear" and the Ministry of Electric Power DL404 "Technical Conditions for Ordering Indoor AC High-voltage Switchgear", and also meets the requirements of the international ...

Primary current: 630 A - 3,150 A
VAC: 12 kV

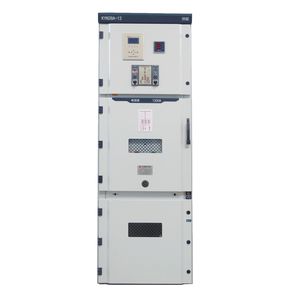

Armored Movable Enclosed Switchgear KYN28A-12 type indoor AC metal-clad mid-mounted switchgear is suitable for three-phase AC systems with a rated voltage of 12kV and a rated frequency ...

Primary current: 5,000 A
VAC: 380, 400, 660 V
VDC: 110, 220 V

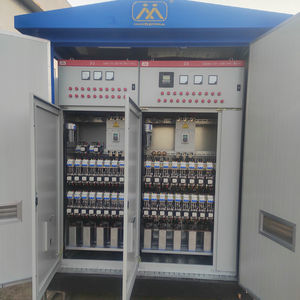

The GGD AC low voltage power distribution cabinet is suitable for power plants, substations, industrial and mining enterprises, and other electricity users with a 50Hz AC system, rated working voltage ...

VAC: 0.38 kV - 0.66 kV

... on-the-hour recording of three-phase voltage, current, frequency, active power, reactive power, power factor, active energy, and reactive energy on the transformer's low voltage side. Measures total harmonic ...

Primary current: 2,000, 2,500, 3,150 A
VAC: 72.5 kV

... AWS D1.1 • High altitude correction per IEC 62271 & IEEE C37, ~ 5000m • High reliability, smart, compact and economic switchgear solutions • Modular compact GIS offering outstanding flexibility for optimizing layouts

Primary current: 3,150, 2,000, 2,500 A
VAC: 126 kV

... AWS D1.1 • High altitude correction per IEC 62271 & IEEE C37, ~ 5000m • High reliability, smart, compact and economic switchgear solutions • Modular compact GIS offering outstanding flexibility for optimizing layouts

Primary current: 3,150, 2,000, 2,500 A
VAC: 145 kV

... AWS D1.1 • High altitude correction per IEC 62271 & IEEE C37, ~ 5000m • High reliability, smart, compact and economic switchgear solutions • Modular compact GIS offering outstanding flexibility for optimizing layouts

Primary current: 630 A
VAC: 12 kV

The metal-encapsulated, air-insulated mediumvoltage switchgears, Type D are for universal application: They range from compact ring cable switchgears up to complex power distribution switchgears. ...

Primary current: 630 A
VAC: 12 kV

The metal-encapsulated, air-insulated mediumvoltage switchgears, Type W 12 are for universal application: They range from compact ring cable switchgears up to complex power distribution switchgears. ...

Primary current: 630 A - 1,250 A
VAC: 12, 24 kV

Disconnector free, withdrawable design Type (WEL) • Metal-encapsulated and air-insulated • High degree of operating safety based on sturdy, patented 2-spindle design of withdrawable cassette • For partitioning with circuit-breaker ...

... services. Switchgear consist of the cabinet and various types of electrical device and the device usually included circuit breakers, ammeter, voltmeter, transformer, meter, etc. Our products cover low-voltage, ...

... distribution products from medium to low voltage levels. The M2L electrical distribution system integrates these products into a complete factory assembled solution which combines medium voltage connection, ...

Primary current: 80,000 A
VAC: 245, 138, 420, 300, 145 V

... Siemens Energy is your partner of choice for high-voltage substations on budget and on time.  Much more than you would expect Siemens Energy's scope of supply comprises much more than the high-voltage ...

VAC: 208 V - 38,000 V

... NFPA 99/110 Compliant Alarm • Annunciation with Audible Horn • Engine Control mimic Screen with gauges for RPM, DC Battery Voltage, Oil Pressure, Engine Coolant temperature, Engine Hours, Number of starts

Primary current: 3,150, 4,000 A
VAC: 145, 170 kV

Modular solution for reliable energy supply The gas-insulated switchgear ELK-04 is the ideal solution for reliable energy supply up to a rated voltage of 170 kV, a rated normal current up to 4000 A, ...

Primary current: 600 A

Eaton’s load interrupter medium-voltage switchgear (MVS) provides safe, reliable switching and fault protection. Designed for applications where high duty cycle operation is not needed, the metal-enclosed ...

Primary current: 0 A - 6,300 A
VAC: 0 V - 690 V

MNS is ABB's low-voltage switchgear and controlgear assembly for power distribution and motor control. The MNS design is verified in accordance with the latest IEC standards, IEC 61439 -1/-2 and IEC ...

Primary current: 25,000 A
VAC: 24 kV

NXAIR M medium-voltage switchgear 24 kV up to 25 kA is the clever solution for the challenges of today and tomorrow. Because of its voltage level, the switchgear NXAIR ...

Primary current: 2,500 A

HYpact is a hybrid compact switchgear assembly that typically consists of circuit breakers, disconnectors, and earthing switches located in a common gas tank. Current and voltage transformers can be added ...

Primary current: 1,200 A - 4,000 A
VDC: 4,760, 15 V

Eaton’s VacClad-W switchgear is a metal-clad, medium voltage switchgear that can be custom-engineered to fit a wide array of application and safety requirements. This decidedly versatile ...

Primary current: 400 A
VAC: 24 kV

... extendable and one-piece medium voltage boards cover medium voltage networks of up to 24 kV. A permanently sealed enclosure, filled with SF6, contains the entire device and busbars in a compact board. ...

Primary current: 3,150 A - 4,000 A
VAC: 145 kV - 170 kV

The gas-insulated switchgear ELK-04 is the ideal solution for reliable energy supply up to a rated voltage of 170 kV, a rated normal current up to 4000 A, and a rated short circuit current up to 63 kA. ...

Primary current: 1,250 A
VAC: 3.6 kV - 12 kV

... completely metal-clad and enclosed, the product could effectively prevent the proliferation of accident. 2. The low-voltage part and high-voltage part are completely isolated. 3. After door is closed, ...

Primary current: 0 A - 3,150 A

　　N2X-12 non-SF6 gas-insulated metal-enclosed switchgear, designed and developed by the German senior experts, is a new generation of Medium-voltage C-GIS product integrating the excellent advantages ...

Primary current: 0 A - 630 A
VAC: 0 kV - 15 kV

The Trident Range of Oil RMU has started the service for over 35 years with trouble free operations. The Trident Range from CG is designed for both indoor and outdoor applications. The device is made from rugged construction with ...

Vista® Underground Distribution Switchgear The answer to your difficult-to-solve switching and protection problems through 38 kV, Vista Underground Distribution Switchgear features 600-ampere load-interrupter ...

Primary current: 600 A - 2,000 A
VAC: 12, 7.2 kV

Offering a high level of safety and approved by classification societies worldwide, the HS21 medium voltage switchgears are mainly used on board LNG ships and large container ships that require high-capacity ...

Primary current: 0 A - 2,500 A
VDC: 24 kV

Modular doble busbar switchgears with integral gas insulation, up to 36 kV TECHNICAL DETAILS: Rated voltage: up to 36 kV Rated current of main busbar: up to 2000 A Rated current of shunt: up to ...

... insulation switchgear cabinet for loop network is a more environmental and reliable new generation of switchgear cabinet for loop network which meets the requirements of replacing the traditional SF6 ...

Primary current: 1,250, 630, 125 A
VAC: 12 kV

Overview SVI solid insulated switchgear (SF6 free switchgear) is KEMA type tested and suitable for middle voltage power distribution system with a rated voltage of less ...

Primary current: 100 A - 6,300 A
VAC: 215 V - 660 V

... GCS , MNS and GGD series low voltage switchgears apply to the distribution system of power plant, substation, petrochemical industry, metallurgical industry, traffic energy and high-rise buildings. ...
