Primary switchgear ZF12D
high-voltagegas-insulatedcompact

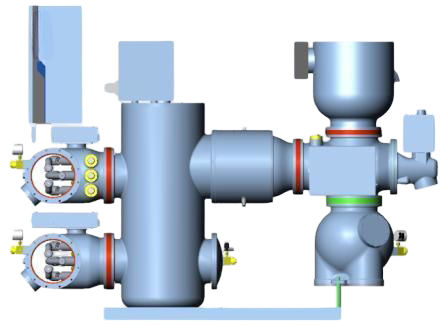

Primary switchgear - ZF12D - Henan ping high electric co., LTD. - high-voltage / gas-insulated / compact
Primary switchgear - ZF12D - Henan ping high electric co., LTD. - high-voltage / gas-insulated / compact
Add to favorites
Compare this product

Characteristics

Type
primary
Electrical characteristics
high-voltage
Configuration
compact, gas-insulated
VAC

Max.: 145,000 V

Min.: 126,000 V

Description

Product name
ZF12D-126/145(L) combined apparatus (Gas-insulated switchgear GIS)

Category
  • High-voltage applications
  • Combined apparatus / GIS

Product overview
ZF12D-126/145(L) GIS is a new-generation compact GIS developed in-house. Its technical parameters and footprint are leading among international equivalents. The product optimizes internal conductor layout and uses an advanced self-powered double-moving arc-extinguishing chamber structure, featuring reduced operating power and low breaking speed (as described in the original source). These characteristics improve system reliability and service life, significantly enhancing overall product performance. The product has completed the full set of IEC standard type tests and is suitable for domestic and international markets.

Features / Technical specifications
  • New-generation compact GIS design
  • Optimized internal conductor layout
  • Advanced self-powered double-moving arc-extinguishing chamber
  • Reduced operating power and low breaking speed (as described in the original source)
  • Improved system reliability and service life
  • Significantly enhanced product performance
  • Full IEC standard type tests completed; suitable for domestic and international markets
