Gas-insulated substation GXH5

power distributionfor high-voltage transformerscompact

Product overview
平高电气 offers the GXH5 series of environmental AC gas-insulated lines (GIL) in 252 kV, 550 kV and 1100 kV ratings. Available gas schemes include SF6/N2 mixtures and C4F7N/CO2 mixtures. The C4F7N/CO2 solution provides a full replacement for SF6, reducing global warming potential (GWP) by approximately 97.5%, while the SF6/N2 option cuts SF6 usage by about 60.5% and supports operation down to -40°C. The environmental GIL products maintain the structural dimensions, technical maturity and compactness of traditional SF6 GIL, ensuring strong parts commonality and high interchangeability for substation retrofits and expansions.

Application / classification
High-voltage systems - GIL

Features / technical specifications

• Rated voltage levels: 252 kV, 550 kV, 1100 kV
• Gas schemes: SF6/N2 mixtures; C4F7N/CO2 mixtures (full SF6 replacement)
• Environmental performance: C4F7N/CO2 reduces GWP by about 97.5% compared with traditional SF6 GIL
• SF6 savings: SF6/N2 mixtures reduce SF6 usage by approximately 60.5%
• Low-temperature suitability: SF6/N2 scheme supports operation down to -40°C
• Interchangeability: Structural dimensions and parts commonality consistent with traditional SF6 GIL, facilitating retrofits by replacing only the insulating medium

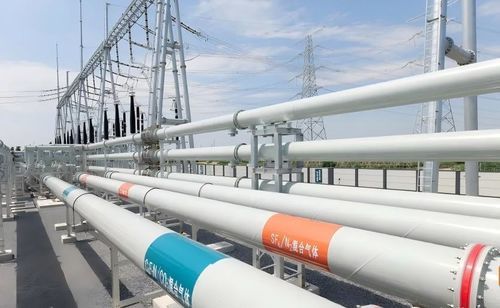

• Field deployment: 550 kV C4F7N/CO2 GIL was commissioned in 2025 at Anqing 500 kV Rongsheng substation (the first put-into-service 550 kV environmental GIL domestically and internationally)
• Insulation performance: Achieves equivalent insulation strength to pure SF6 GIL with limited pressure increase
• Standards and agreements: Technical parameters meet national standards and advanced State Grid technical agreements
