Voltage resistors

Resistance: 1 Ohm - 10,000,000 Ohm

High-voltage chip resistors feature special resistive structure attaining the surge-resistance more than double standard resistors.One piece of this saves several standard resistors ...

Resistance: 1,000 kOhm - 1,000,000 kOhm

Featuring thick-film resistors, the Murata MHR series of high-voltage resistors is available in compact and thin SIP packages. Variants with small deviations are also available on request.

... a neutral earthing resistor (or neutral grounding resistor) is fitted between the neutral and earth in order to limit the current and give automatic electrical protection devices enough time to react. Neutral ...

Resistance: 100 Ohm - 10,000,000,000 Ohm
Power rating: 5, 10, 20, 25 W

High Voltage Metal Glaze Film Resistors Chief Characteristic: Electronic performance is stable. Enduring the high voltage. Extensively used in the high voltage ...

Resistance: 5 Ohm - 100,000,000 Ohm
Power rating: 30 W - 500 W

Enduring high voltage large power. Principally used to the high voltage divider, high voltage measure, aging equipments and electronic loads. Among which 100W-1.7/2.1/3.3/5.5MΩ, 150W-6.6MΩ ...

Resistance: 1 Ohm - 5,000 Ohm
Power rating: 20 W - 500 W

... pulse. Technology Standard The People's Republic of China Military Standard FL5905 GJB3017-97《Resistance Film High Voltage General Specialized for》

Resistance: 1 Ohm - 10,000 Ohm
Power rating: 50 W - 15,000 W

Wirewound braking resistors can be suitablefor rugged applications. Two terminal extensions are fixed on both ends of aceramic tube on whose surface winds wave-shaped alloy resistance wire and ahigh temperature resistant ...

Resistance: 1 Ohm - 10,000 Ohm

... the construction of power resistors with high ohmic value (from 1 Ω to over 10 kΩ) that are both compact and very light (960 W resistor weighing only 150 g). Additionally it offers good thermal characteristics, ...

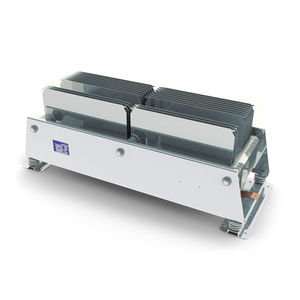

... Damping Resistors the design is based on CSN® Resistor Webs. The resistor units provide operation at high continuous power, excellence voltage strength and low inductivity ...

... be high-voltage-proof. These damping resistors limit inrush current up to 3.5 times the rated current. These resistors may be also availed according to the specific requirement of the customer.

Resistance: 10,000 Ohm - 27,000,000 Ohm
Power rating: 0.1, 0.125, 0.25, 0.75, 1 W

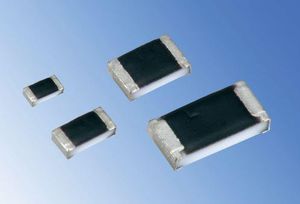

SCOPE This specification describes RV0603/0805/1206/2010/2512 high voltage chip resistors with lead-free terminations made by thick film process. APPLICATIONS  Converter  Printer equipment  Battery ...

High voltage up to 3000 V Typical resistance ratios of 250:1, 500:1, etc. Flow solderable Tape and reel packaging available Termination style: 3-sided wraparound termination or single termination flip chip available ...

Resistance: 50 Ohm - 100 Ohm

... RES100 range of High Voltage Resistors are available with a rated power from 30W up to 1000W with voltage limits between 30kV and 1000kV, depending on the application use required. We ...

Resistance: 1,000 Ohm - 22,000,000 Ohm
Power rating: 0.125 W - 3 W

Type CFZ was developed as a low-cost alternative to high voltage thick film and carbon composition resistors. Carbonized film processing enables pulse capabilities to 12KV! Elements are protected by ...

Resistance: 1 Ohm - 150 Ohm
Power rating: 3, 5, 10, 25 W

... Terminal / Surface Mount / Heat Sinkable Packaging Wirewound Resistors employ special winding techniques to maximize the effective joule rating of each resistor. Most wirewound resistors ...

Resistance: 1,000,000 Ohm - 1,000,000,000 Ohm
Power rating: 0.5, 0.8, 1.2 W

Wattages from 0.5W, 0.8W and 1.2W. Tolerances of 1, 5 and 10%. Ohmic values of 1 Mohm to 1 Gohm.

Resistance: 10,000 Ohm - 100,000,000 Ohm
Power rating: 0.1 W - 1 W

... Superior to RK73 series in maximum working voltage. Suitable for flow and reflow solderings. Products meet EU-RoHS requirements. EU-RoHS regulation is not interded for Pb-glass contained in electrode, resistor ...

Resistance: 1 kOhm - 1,000,000 kOhm
Power rating: 20 W - 1,000 W

... Tolerance Wider resistance values High Voltage、High Power Applications： Impulse voltage generator Electric-arc furnace damping, Pulse modulator, radar pulse circuit. Arc suppression circuit of capacitor, ...

Power rating: 100 W - 5,000 W

The Resistor Wire in these elements is mounted in a compressed stainless steel tube and fixed by compressed MgO (Magnesium Oxide). Applications are: Water cooled Resistors High Voltage ...

Resistance: 1 Ohm - 2,200 Ohm
Power rating: 30 W - 960 W

The GXTD series is a wire resistor manufactured by Frizlen. The resistor features an IP40 grade protection, and has super flat construction with a maximum thickness of 5mm. It has a maximum width of ...

Power rating: 3.36 W

product description: To evaluate the design we considered the following design case(s): Case: Normal Operation Voltage: 1100 VDC Medium to be heated: Fresh cooling Water Working pressure: 4.5 Barg Temperature in: max. ...

Power rating: 0.5 W - 500 W

... -1%, +/-2%, +/-5% and +/-10%. High resistor power could be attained by connecting resistor in parallel or series Applications. Its applications high Voltage divider, Electrostatics, ...

Resistance: 200 Ohm - 10,000,000 Ohm

... are the source of the Type MG Precision High Voltage Resistors' outstanding combination of performance features: • Single-resistor values as high as 10,000 Megohms. • Maximum continuous ...
