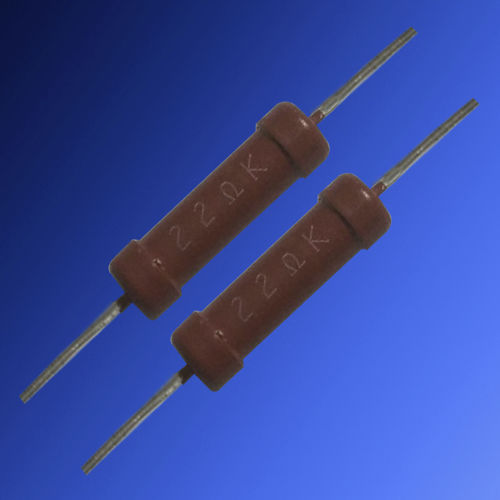

Wire-wound resistor HVB series

high-voltageaxial-lead

KWX’s HVB Resistor series are primarily designed for high voltage,power charging/discharging circuits,surge energy applications and conform to RoHS directive and lead-free. For customed designs,tighter tolerances,non-standard technical requirements,or custom special applications,please contact our sales for more information. The HVB is perfect for medical defibrillators. Surface insulation optional palm red or green. Compared with HVA,the HVB offers more choices for customer. Features： Special ceramic resistor , was made of Clay , Silicon dioxide and Porcelain cement, After sintering under high temperature and high voltage , the resistor core was build ,then take the insulation coating. Saver than the wire-wound resistor and film resistor , which will avoid the wire disconnecting and the film breaking up . High peak power can be reached at 5KW-30KW in short time. Good performance in bearing high voltage and high current. Products meet the RoHS requirments. Applications: Radar,Motor Drives, Broadcast Transmitters. X-Ray equipment ,Lasers,Medical Defibrillators. Dynamic Braking, Soft-start/Current-limit equipment. Snubber Circuits, Dummy Loads, Energy Research field.. RF Amplifiers,Semiconductor Process,Power Conditioning.
