Resistance: 10 Ohm - 500 Ohm
Power rating: 0.05 W - 20 W
CXH series of Surface Mount Chip Resistors and Terminations feature Smiths Interconnect’s patented outrigger resistor technology to offer improved power handling over conventional resistors ...
Resistance: 1 Ohm - 5,000,000 Ohm
Power rating: 0.4, 0.6 W
... NC550 precision resistors are used in almost all areas of electronics because of the low inherent noise. However, the applications for switching and control systems as well as measuring circuits stand ...
Resistance: 0.005 Ohm - 0.1 Ohm
Power rating: 5 W
Shunt Resistor MST - bare metal Bare metal shunt resistor with power rating up to 5 watts @85 °C, tolerances of ±1%…±5% for resistance values of 0,005Ω…0,1Ω Bare metal resistor Current ...

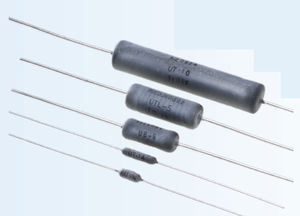

Resistance: 0.01 Ohm - 260,000 Ohm
Power rating: 10 W
Power Resistor UT - wirewound 10 watt high temperature power resistor for max. -55 °C…+350 °C with wide resistance range 0.01Ω…260kΩ - does not require a heat-sink Power resistor ...
Resistance: 1 Ohm - 22,000,000 Ohm
Power rating: 0.05 W - 2 W
SCOPE This specification describes AC0201 to AC2512 chip resistors with leadfree terminations made by thick film process. APPLICATIONS All general purpose applications Car electronics, industrial application FEATURES ...
Resistance: 0 kOhm - 6,000 kOhm
All welded construction Ceramic core Non-flammable cement coating Tinned copper-clad iron leads (for axial parts) High power dissipation in small volume Ideal for pulse application

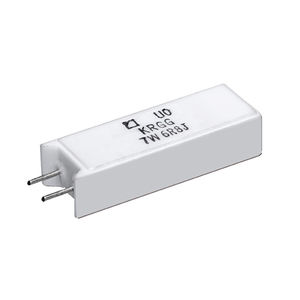

Resistance: 0.2 Ohm - 8,000 Ohm
Power rating: 2 W - 10 W
Wire wound resistors in ceramic casing product features High power resistors - vertical, ceramic case rated power 2 - 10 W resistance range R20 … 8K tolerance ±5% … ±10% dimensions (LxWxH) 20 ...

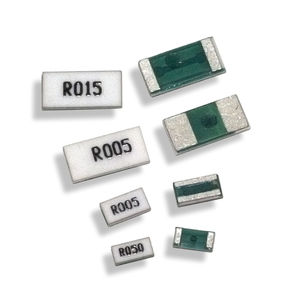

Resistance: 0.005 Ohm - 0.5 Ohm
Power rating: 1, 2 W
Metal Element Current Sense The MCS series current sense resistors are constructed with a Cu Terminal Electrode and Pb Free terminations (60% Sn, 40% Ni). This electrode sits atop a 96% alumina substrate thermo dissipation ...
Resistance: 0.1 Ohm - 150,000 Ohm
Power rating: 10 W - 250 W
Wattages from 10W to 250W, tolerances of 0.1% to 5%, ohmic values of 0.05 to 150K.
Resistance: 0.1 Ohm - 10 Ohm
Power rating: 0.166 W - 0.66 W
Applications Car electronics, Power supply, Industrial robots Features Excellent anti-sulfuration characteristic due to using high sulfuration-proof inner top electrode material. Current detecting resistors ...
