Thin-film resistor CHEP
high-frequencyRFhigh-power

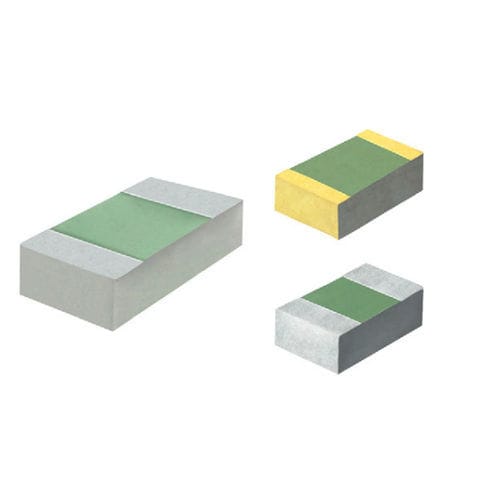

Thin-film resistor - CHEP - VISHAY - high-frequency / RF / high-power
Thin-film resistor - CHEP - VISHAY - high-frequency / RF / high-power
Add to favorites
Compare this product

Characteristics

Technology
thin-film
Electrical characteristics
high-frequency, high-power, RF
Applications
for electronics
Resistance

Max.: 120 Ohm

Min.: 20 Ohm

Power rating

1.2 W, 1.8 W, 2 W, 2.8 W

Description

Overview
High-frequency, high-power thin film chip resistor for microwave applications. Series: CHEP. Product code: 53090.

Features
  • Operating frequency up to 50 GHz
  • Thin film microwave resistor technology
  • Termination options: flip-chip or wraparound terminals
  • Designed for high-power microwave circuits


Documentation
Datasheet available: CHEP — High Frequency and High Power Thin Film Chip Resistor (53090).

ECAD models
ECAD models available for download via Ultra Librarian.

Technical specifications
  • Product family: CHEP
  • Product code: 53090
  • Maximum operating frequency: up to 50 GHz
  • Resistor technology: thin film (microwave)
  • Termination options: flip-chip or wraparound

Catalogs

No catalogs are available for this product.
