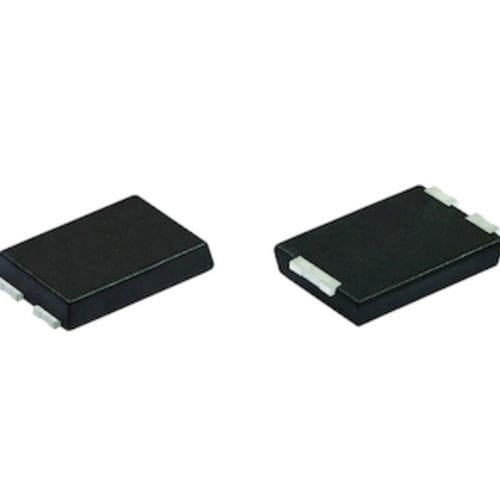

SMD diode VS-E7SX0112-M3V

surface-mountrectifierhigh-frequency

Product overview
Hyperfast rectifier (FRED Pt®) VS-E7SX0112-M3V. Nominal forward current 1 A; packaged in SMPC HV. Voltage family referenced in product literature: 1200 V.

Features

• Minimum creepage distance: 5.4 mm
• Comparative Tracking Index (CTI): ≥ 600
• Hyperfast recovery time with reduced Qrr and soft recovery characteristics
• Planar structure with platinum-doped lifetime control for improved ruggedness and reliability
• SMPC HV package optimized for high-voltage applications

Applications

• Clamp, snubber and freewheeling diode in flyback auxiliary power supplies
• Bootstrap and desaturate functions for HV MOSFET and IGBT drivers
• High-frequency rectification in Cuk and SEPIC circuits, including LED lighting applications
• General high-voltage, high-frequency rectifier roles where low forward voltage and fast recovery are required

Documents (selected)

• Datasheet | VS-E7SX0112-M3V | Hyperfast Rectifier, 1 A FRED Pt®
• Markings | Part Marking Information | SMPC, SMPC HV FRED Pt®
• Packaging Information | SMPC HV
• Package Drawings | Outline Dimensions | SMPC HV
• Product Literature | Infographic: 1200 V FRED Pt® GEN 7 Hyperfast Rectifiers
• Product Literature | Selector Guide: Diodes and Rectifiers Solutions for Aerospace and Defense
• Sell Sheet: 1200 V FRED Pt® Hyperfast Rectifiers in SMPC HV Package

Technical specifications

• Device type: Hyperfast rectifier (FRED Pt®)
• Model: VS-E7SX0112-M3V
• Nominal forward current: 1 A
• Minimum creepage distance: 5.4 mm
• Comparative Tracking Index (CTI): ≥ 600
• Recovery behavior: hyperfast recovery time, reduced Qrr, soft recovery
• Structure: planar with platinum-doped lifetime control
• Package reference: SMPC HV (see documentation)
• Voltage family (from literature): 1200 V FRED Pt® GEN 7
