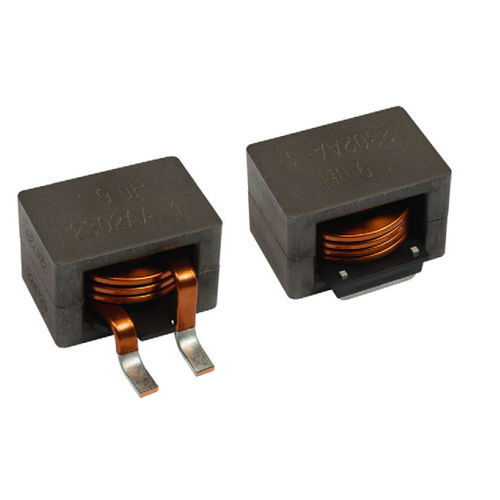

Power inductor IHDV0808AC-3A

SMDfor automotive applicationspower factor correction

Product overview
Automotive power inductor designed for high-voltage and high-temperature applications. Surface-mount device (SMD) with 1.5 kV isolation rating and 180 °C operating temperature.

Features

• Size: 20.0 mm x 14.0 mm x 14.0 mm
• Isolation voltage: 1.5 kVDC
• High impedance for differential filtering: 1 kΩ at 80 MHz (peak)

Applications

• Automotive on-board chargers (OBC)
• High-voltage inverters and systems
• Power factor correction (PFC)

Technical specifications

• Model: IHDV0808AC-3A
• Manufacturer: Vishay
• Product family: Specialty Composite Inductors
• Package / Mounting: Surface-mount device (SMD)
• Operating temperature rating: 180 °C
• Isolation voltage: 1.5 kVDC
• Size (L x W x H): 20.0 mm x 14.0 mm x 14.0 mm
• Impedance: 1 kΩ at 80 MHz (differential, peak)
