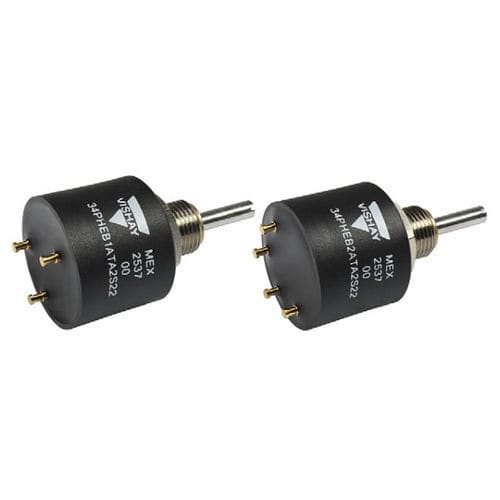

Hall effect magnetic sensor 34 PHE

Product overview
34 PHE — ten-turn bushing-mount Hall-effect sensor in size 09 (7/8\" - 22.2 mm).

Features

• All electrical angles available up to: 3600°
• Accurate linearity down to: ± 1 %
• CW / CCW analog or digital outputs (PWM)

Notes
ECAD models available from Ultra Librarian. Datasheet available for 34 PHE.

Technical specifications

• Model: 34 PHE
• Mount: Ten turns bushing mount
• Size: 09 (7/8\" - 22.2 mm)
• Electrical angle: up to 3600°
• Linearity: ±1 %
• Outputs: CW / CCW analog or digital (PWM)
• Site product identifier: 57127
