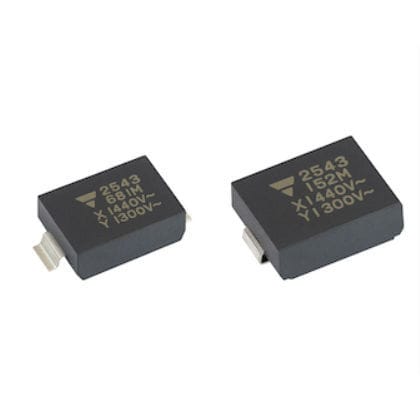

Ceramic capacitor SMDY1...S

SMDEMI

Product overview
EMI suppression safety capacitor, ceramic disc singlelayer, Class X1 rated 440 VAC and Class Y1 rated 300 VAC. Designed to meet IEC 60384-14 requirements for safety capacitors. Surface-mount package suitable for high-density PCB assemblies.

Features

• IEC 60384-14 compliant
• Singlelayer ceramic disc construction
• Surface-mount mounting

Applications

• X1 (line-to-line) and Y1 (line-to-ground) interference suppression
• Power supplies, inverters and motor drives
• Industrial control equipment and renewable energy converters

Documentation (selection)

• Datasheet: SMDY1...S
• Soldering Recommendation: SMDY1 Series / SMDY1...S Series
• Infographic: THE NEW STANDARD IN SAFETY: WHY THE SMDY1...S SERIES OUTPERFORMS
• Certificates: CQC, UL/CSA, VDE, CB (documents specific to SMDY1-S and SMDY1 Series)

Technical specifications

• Type: EMI suppression safety capacitor
• Dielectric / construction: Ceramic disc, singlelayer
• Safety classifications: Class X1 (440 VAC) and Class Y1 (300 VAC)
• Standards compliance: IEC 60384-14
• Mounting: Surface-mount
• Series / Model: SMDY1...S
