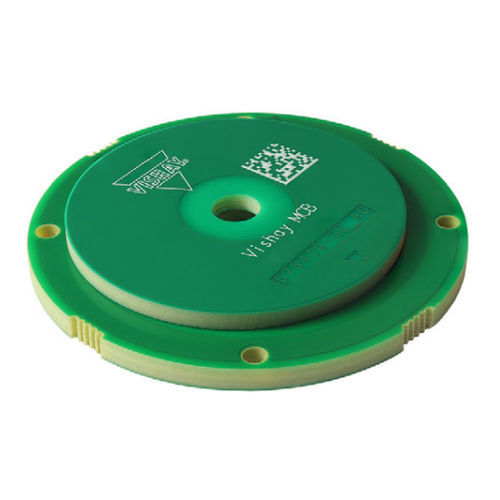

Absolute rotary encoder RAIK045I MPinductivenon-contactindustrial
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- inductive
- Construction
- non-contact
- Applications
- industrial, for motors, for robotics
- Housing diameter
45 mm
(1.77 in)- Rotational speed
10,000 rpm
(62,832 rad.min-1)- Process temperature
Max.: 105 °C
(221 °F)Min.: -40 °C
(-40 °F)
Description
Product overview
Rotational absolute inductive kit encoder, 45 mm version. Medium precision position sensor designed for off-axis rotational applications such as motor drives and robotic position feedback.
Features
Documents
Additional resources
Technical specifications
Rotational absolute inductive kit encoder, 45 mm version. Medium precision position sensor designed for off-axis rotational applications such as motor drives and robotic position feedback.
Features
- Off-axis rotational absolute inductive encoder
- Designed for motor drive, robotic position feedback and industrial motion control requiring accurate positioning
- Rotation speed up to 10,000 rpm
Documents
- Datasheet — RAIK045I MP
- Product literature — Did You Know (RAIK / RAIE - Rotational Absolute Inductive Encoders)
- Product literature — Infographic (RAIK / RAIE - Rotational Absolute Inductive Encoders)
- Product literature — Capabilities and Custom Options (RAIK / RAIE - Rotational Absolute Inductive Encoders)
Additional resources
- ECAD models (download from Ultra Librarian)
Technical specifications
- Model: RAIK045I MP
- Technology: Inductive absolute encoder (non-contact)
- Form factor / version: 45 mm kit encoder
- Design: Off-axis rotational
- Precision: Medium precision position sensor
- Intended applications: Motor drive, robotic position feedback, industrial motion control
- Maximum rotation speed: Up to 10,000 rpm
- Available documentation: Datasheet, product literature, infographic, capabilities and custom options
