High-current choke ICMS2321-10

common modehigh-voltageEMI

Product summary

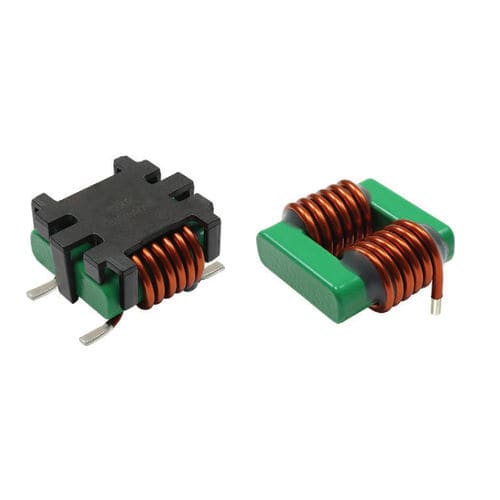

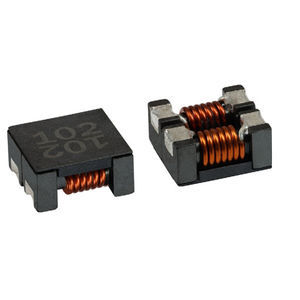

Common mode choke ICMS2321-10 designed for high-current, high-voltage applications. Rated for 1.5 kV and operation up to 150 °C.

Features

• SMD and THT termination options for flexible mounting
• SMD design compatible with automated pick-and-place (clip available for SMD only)
• High temperature capability up to 150 °C

Applications

• High-current, high-temperature power systems
• DC/DC converters
• EMI filters and suppression circuits

Documents
Document type: Datasheet
Title: ICMS2321-10
Description: Common mode choke, high current, high voltage 1.5 kV, temperature 150 °C

ECAD Models
ECAD models available for download from third-party ECAD library providers (Ultra Librarian).

Technical specifications

• Model: ICMS2321-10
• Function: Common mode choke
• Current rating: for high-current applications (see datasheet for exact values)
• Voltage rating: 1.5 kV
• Operating temperature: up to 150 °C
• Terminations: SMD and THT
• Pick-and-place compatibility: clip available for SMD design only; THT termination does not include pick-and-place clip
• Typical applications: DC/DC converters, EMI filtering, high-temperature/high-current environments
