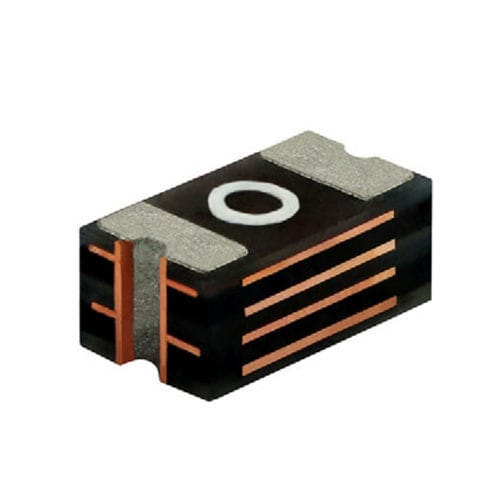

PTC fuse PPTC0603E3

SMDlow-resistanceelectronic equipment

Product overview
Compact SMD 0603 polymer positive temperature coefficient (PTC) device for resettable overcurrent protection in low-profile surface-mount applications.

Features

• Fast trip response to overcurrent events
• Low hold resistance to minimize voltage drop
• Compact, low-profile SMD 0603 package

Applications

• Resettable overcurrent protection for ports and interfaces
• USB ports
• HDMI sources

Documentation

• Datasheet: PPTC0603E3
• Handling and Mounting – Cautions and Warnings (SMD Polymer PPTC)
• Application matrix for thermistors/varistors
• Sell sheet: PPTC – Polymer PTC Resettable Fuses
• Infographic: PPTC – Polymer PTC Resettable Fuses
• White paper: Modelling framework for Vishay PPTC devices

ECAD / Models
ECAD models and design resources are available from Ultra Librarian.

Technical specifications

• Series / Model: PPTC0603E3
• Package: SMD 0603 (surface-mount)
• Device type: Polymer PTC (resettable overcurrent protection)
• Key attributes: fast trip response; low hold resistance; compact, low-profile SMD
• Typical applications: USB ports, HDMI sources, general port protection
• Supporting literature: datasheet, handling and mounting guidance, application matrix, sell sheet, infographic, white paper
