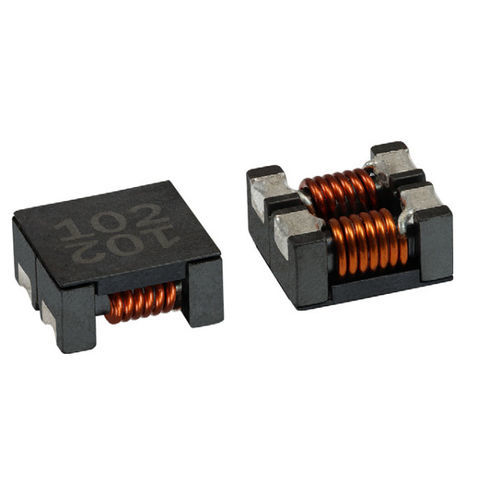

Ferrite choke ICM5050-A

wire-woundhigh-currentcommon mode

Product overview
High-current SMD common-mode choke for power and EMI suppression applications. Wirewound ferrite construction optimized for surface-mount PCB assembly. AEC-Q200 qualified.

Features

• Wirewound ferrite common-mode choke
• 12.0 mm x 11.0 mm x 6.0 mm SMD package
• AEC-Q200 qualified

Applications

• DC/DC power supplies
• LCD displays
• Noise suppression and EMI filtering

Documents

• Datasheet: ICM5050-A — High Current, SMD Common Mode Choke (available on product page)

ECAD Models
ECAD models available via Ultra Librarian (reference shown on product page).

Technical specifications

• Type: Common-mode choke, wirewound ferrite
• Mounting: SMD (surface-mount)
• Package dimensions: 12.0 mm x 11.0 mm x 6.0 mm
• Qualification: AEC-Q200
• Primary applications: DC/DC power supplies, LCD displays, noise suppression and EMI filtering
• Datasheet title: ICM5050-A — High Current, SMD Common Mode Choke
• Ordering reference (Buy Now): ICM5050ER
