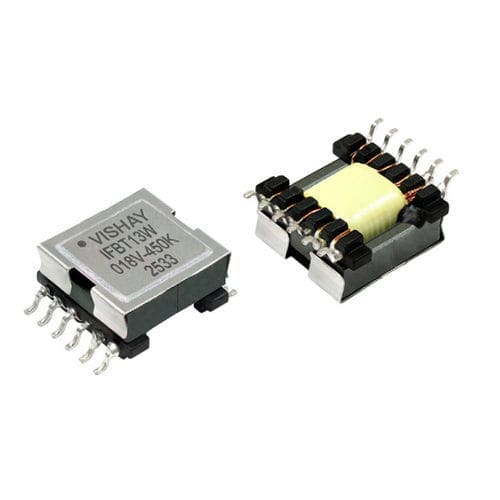

Power transformer IFBTfor electronicsfor PCBsurface-mount
Add to favorites
Compare this product
Characteristics
- Type
- power
- Applications
- for electronics, for PCB
- Mounting
- surface-mount, SMD
- Other characteristics
- flyback, Power-over-Ethernet (PoE)
- Electric power
6 W, 13 W, 30 W
- Secondary voltage
Min.: 1.8 mV
Max.: 24,000 mV
Description
Product Overview
Surface-mount PoE flyback transformers from the IFBT family designed for Power over Ethernet (PoE) applications. Available in compact SMD packages with typical footprints starting at 22.0 x 17.5 x 9.1 mm and multiple power ratings (6 W, 13 W, 30 W).
Features
Documentation
Technical specifications
Surface-mount PoE flyback transformers from the IFBT family designed for Power over Ethernet (PoE) applications. Available in compact SMD packages with typical footprints starting at 22.0 x 17.5 x 9.1 mm and multiple power ratings (6 W, 13 W, 30 W).
Features
- Compact SMD package: typical size 22.0 x 17.5 x 9.1 mm (and larger variants)
- Optimized for PoE flyback converter topologies
- Available power ratings: 6 W, 13 W, 30 W
- Multiple footprint and pinning variants to address thermal and isolation requirements
Documentation
- Datasheet available for the IFBT product family (PDF)
- ECAD models available for download from Ultra Librarian (external provider)
Technical specifications
- Product family: IFBT
- Mounting: Surface-mount device (SMD)
- Application: Power over Ethernet (PoE) flyback transformer
- Typical dimensions: 22.0 x 17.5 x 9.1 mm (and larger variants)
- Power ratings: 6 W, 13 W, 30 W
