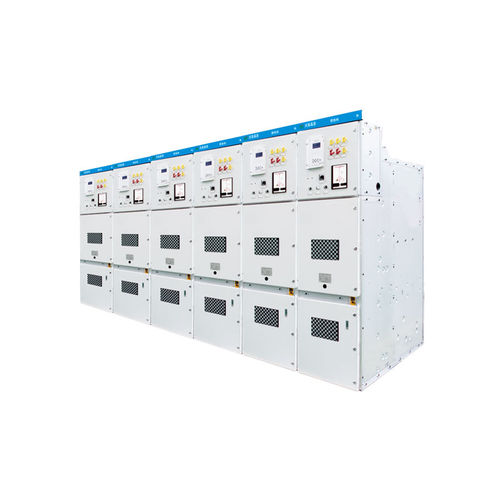

Medium-voltage switchgear KYN28A-12(Z)ACmetal-cladcompact
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- medium-voltage, AC
- Configuration
- metal-clad, compact
- Applications
- industrial, for power plants, for generators, commercial
- Other characteristics
- draw-out
- Primary current
Max.: 5,000 A
Min.: 630 A
- VAC
Max.: 12 kV
Min.: 3.6 kV
Description
Application: In 3.6~12kV power system for control, protection and monitoring.
Standards: IEC 62271-200
Parameters:
Rated voltage: 3.6-12kV.
Rated current: 630-5000A.
Rated short-circuit breaking current: 16-50kA.
Features:
1. Compact design.
2. Easy operation and installation.
3. Reliable interlock.
4. Less Maintenance.
