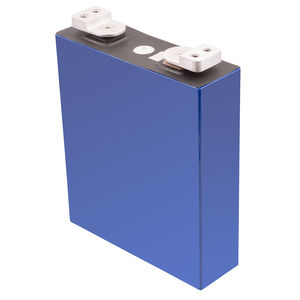

LFP battery LFP240Sprismatic3 Vfor solar applications
Add to favorites
Compare this product
Characteristics
- Type
- LFP
- Configuration
- prismatic
- Voltage
- 3 V
- Applications
- for solar applications, for electric vehicles, industrial, commercial
- Other characteristics
- maintenance-free, stationary, high-reliability, liquid electrolyte
- Load capacity
240 Ah
- Length / diameter
174.2 mm
(6.9 in)- Width
72 mm
(2.83 in)- Height
217 mm
(8.5 in)- Weight
5.2 kg
(11.46 lb)
Description
DESCRIPTION
Reference - LF240Ah
Type - LiFePO4 (LFP)
Weight - 5.22 kg
Nominal capacity (0.5 C) - 240 Ah
Nominal voltage - 3.2 V
Internal resistance of 1 kHz AC - ≤ 0.4 mΩ
Life cycle (charge @ 1C & discharge @ 1C, 80% of rated capacity) - ≥ 2000
OPERATING CONDITIONS
Maximum charging current - 240 A
Maximum constant discharging current - 240 A
Charging cut-off voltage - 3.65 V
Discharging cut-off voltage - 2.5V
SOC usage window - 15 % ~ 95 %
Charging temperature - 0°C ~ 55°C
Discharging temperature - -20°C ~ 55°C
Storage temperature within 1 year - -30°C ~ 55°C
Cell with screwed terminals (M6 x 12mm) (welded terminals version available).
FEATURES
Anti-explosion safety valve applied.
Ceramic membrane technology applied to enhance safety.
Ideal for EV, ESS
