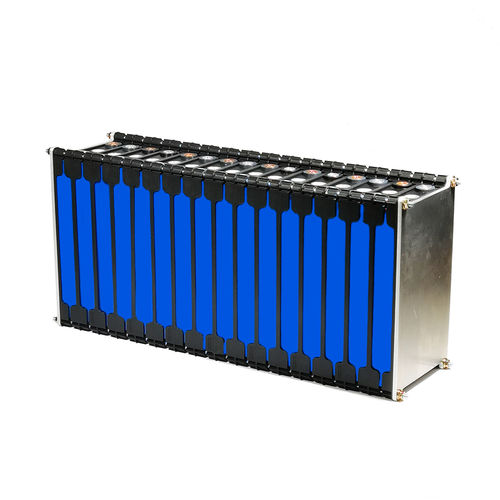

LiFePO4 battery module MOLFP24V144Ah24 Vfor electric vehiclesemergency power supply
Add to favorites
Compare this product
Characteristics
- Type
- LiFePO4
- Voltage
- 24 V
- Applications
- for electric vehicles, emergency power supply, for UPS
- Other characteristics
- BMS
- Load capacity
144 Ah
- Length / diameter
510 mm
(20.1 in)- Width
140 mm
(5.51 in)- Height
244 mm
(9.6 in)- Weight
30 kg
(66.14 lb)
Description
DESCRIPTION
Reference - MOLFP24V144Ah
Model - 24V144Ah 2P8S
Type - LiFePO4 (LFP)
Weight - 30 kg
Nominal capacity (1 C) - 144 Ah
Nominal voltage - 25.6 V
Life cycle (charging CC/CV @0.3C & discharging CC @1C, 100 DOD, 25°C +/-2°C80% of rated capacity) - - ≥2000
Dimension - 244mm x 510mm x 140mm
OPERATING CONDITIONS
Maximum constant charging current - 144 A
Maximum constant discharging current - 144 A
Charging cut-off voltage - 29.2 V
Discharging cut-off voltage - 20 V
Recommended SoC usage window - 10 % ~ 90 %
Charging temperature - 0°C ~ 45°C
Discharging temperature - -20°C ~ 55°C
APPLICATIONS
ESS-Big/GridSupport
ESS-Small
ESS-Solar&Wind,ESS-Telecom(UPS)
EV-Boats
EV-PublicTransport
EV-Retrofit
EV-Utility/IndustrialVehicles
FEATURES
Energy - 3.7 kWh
Energy density - 123 Wh/kg
Packaging materials - Recycled Plastic
Recommended BMS - BMS24V144Ah
