Bag filter housing AcuraLine ALSI

for waterfor chemicalsfor fuel

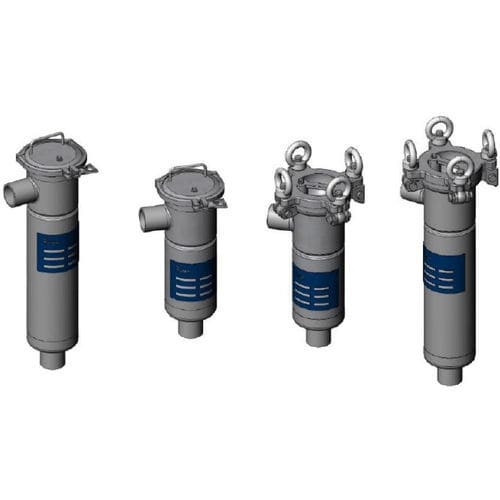

AcuraLine ALSI Series Bag Filter Housings are compact industrial units designed for prefiltration or non-critical applications. Manufactured from 304 (optional 316) Stainless Steel, ALSI bag filter housings feature a quick release triclamp closure (optional bolted closure) and come complete with a bag locking plate and perforated Stainless Steel basketA Water, paints, oils, fuels and chemicals Free-flowing design Flow rate: from 1 to 15 m3/hr Material: 304 or 316 Stainless Steel Bag size: 3 (4″ x 8.8″) or 4 (4″ x 15″) Max. operating pressure: 10 bar (16 bar with bolted closure) Max. operating temperature: -10/+80°C Applications: - Filtration of oils Filtration of Chemicals Water filtration Paints & Inks CNC machine Coolant filtration Acid filtration Process water filtration Solvent filtration Batch filtration Recirculating baths Filtration of Parts washing solutions Connections: - 1 1/2″ BSPF Closure: - Triclamp or bolted Filter bag size: - Size 3: 4″ x 8.8″ Size 4: 4″ x 15″ Filter bag area: - Size 3: 0.1 m2 Size 4: 0.15 m2
