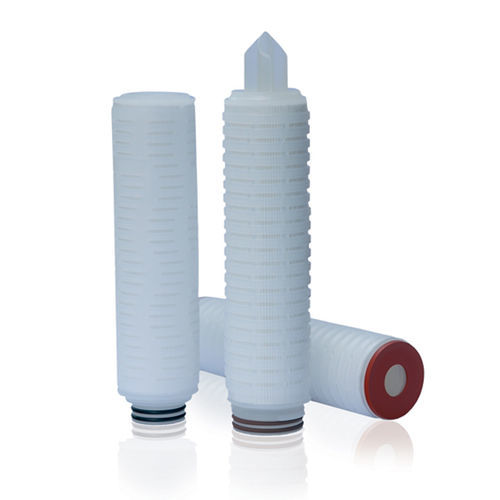

Solvent filter cartridge STERIPleat Nylon

finenylonfor general purposes

STERIPleat Nylon membrane filter cartridges use a naturally hydrophilic Nylon 6,6 membrane for bacteria removal/reduction. These filter cartridges are fully integrity testable and meet US FDA Title 21 and USP Class VI requirements. Applications - - Sterile filtration - Pharmaceutical, Cosmetics, Fine chemicals, Electronics - Point of use Materials - Filter membrane: Nylon 6,6 Support & drainage layer: Polypropylene Core, cage & end fittings: Polypropylene (Optional reinforced PP end caps for sterilisation/sanitisation) Gaskets & O-Rings - Ethylene Propylene , FEP encapsulated, Silicone, Viton, Nitrile, PTFE (DOE only) Lengths - 2”, 5”, 10”, 20”, 30”, 40” (64, 125, 251, 510, 757, 1016mm) Diameter - Standard cartridge: 68.50mm Junior cartridge: 56mm Effective filtration area - 0.65m2 per 254mm (10” module) Max. operating temperature - 80°C Sterilisation - Steam:121°C for 15mins (40 cycles) Autoclave: 121°C for 15mins (40 cycles) Hot water: 90°C for 30mins (0.2bar Δp max) Material compliance - FDA approved components USP Class VI-121ºC Plastics Test
