LED light pipe PTI30 Series

LED light pipe - PTI30 Series - Signal-Construct GMBH
LED light pipe - PTI30 Series - Signal-Construct GMBH
LED light pipe - PTI30 Series - Signal-Construct GMBH - image - 2
Add to favorites
Compare this product

Characteristics

Options
for LEDs

Description

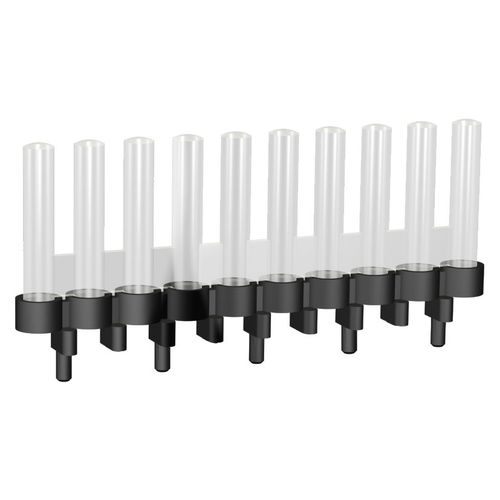

Light Pipe Array Ø3 mm 3, 4, 8 or 10 digits array light pipe, pitch 5,08 mm. The head is slightly rounded to achieve an enhanced light reflection and an improved visibility. System for direct mounting on printed circuit board in connection with SMD-LEDs. Specification Digits: 3, 4, 8 or 10 digits Pitch: 5,08 mm Height: min. 11,7 mm - max. 45 mm (length light pipe Lxxx + 2,4 mm) Mounting hole at the PCB: Ø1,5±0,05
