Panel indicator SMCP06 Seriestemperaturevoltagetorque
Add to favorites
Compare this product
Characteristics
- Measured value
- temperature, voltage, torque
- Display
- LED
- Type
- panel
Description

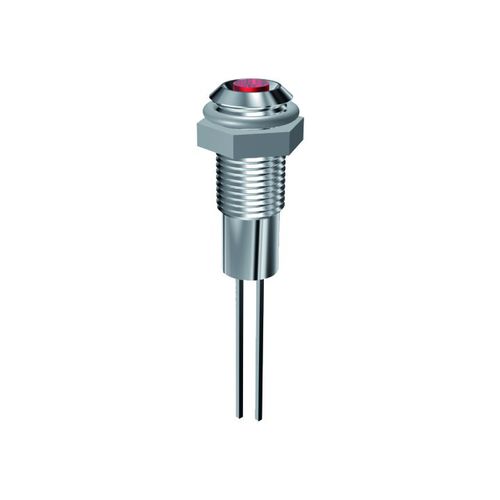

LED-Indicator Ø6mm inside reflector, flat top LED
LED-Indicator with inside reflector and flat top LED.
Specification
Housing: Metal housing in chromium-plated for
screw-fastening (screw-thread M6x0.5mm)
Tightening torque: 100 cN·m
Mounting-hole: Ø6+0.2mm
Protection class acc. to DIN EN 60529: IP50
Connection: 2-pin
Soldering temperature: 260°/5 sec.
Operating voltage: LED voltage DC
Content of delivery: Indicator with washer and
securing nut
