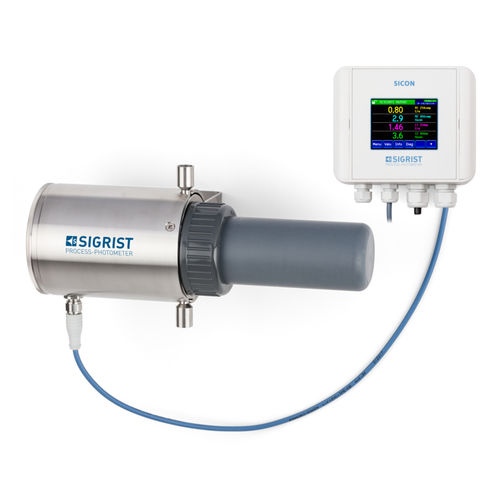

Absorptiometer COLORPLUS 3 SAK 254

Bypass Absorptionmeter SAK 254 UV absorption is an indicator of water pollution by certain dissolved organic substances, such as aromatic compounds or humic substances from the soil. Sigrist ColorPlus 3 offers you online measurement of UV Absorption with optional colour measurement. As a light source a long-lived xenon flash lamp is used having a very low loss of intensity over a long time! The medium is measured with two optical path lengths from which any soiling is determined. The value measured is automatically corrected and the instrument informs the user when the measuring cell has to be cleaned. The PVC cover can be removed without tools. Free access to the optics allows simple cleaning of the measuring cell. The instrument indicates any maintenance due. The control unit SICON selectively displays values, graphs, status and alarms on state-of-the-art touchscreen technology and colour display. Internal data storage allows the visualization of the measurements over the last 32 days. The instrument is used in the treatment of drinking water as well as in the treatment of process water in various kinds of industries. On-line measurement of DOC (UV absorption) with colour (Hazen) option Compensation of window fouling Flow cell easy to clean without tools Measuring principle Absorption Nominal range 0 .. 3 E Measuring span SAK254 0 .. 30 E/m (100 mm) 0 .. 60 E/m (50 mm) Measuring span Hazen 0 .. 150 Hazen @390 nm (100 mm) 0 .. 300 Hazen @390 nm (50 mm) Scale ranges 8 x freely configurable Resolution 0.001 E Enclosure Stainless steel 1.4301 Protection index IP67 Ambient temperature -20 °C .. +50 °C
