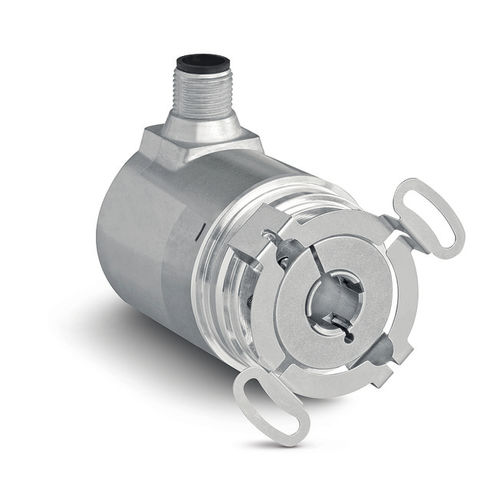

Absolute rotary encoder WH3650M

hollow-shaftSSIwith IO-Link interface

compact hollow shaft rotary encoder with SSI and IO-Link The WH3650M rotary encoder is an absolute magnetic single- and multi-turn rotary encoder, which impresses with its extremely compact design. It is particularly robust and resistant to vibrations. Thanks to its high degree of protection up to IP67 and a temperature range of -40° C … +85° C, it is also suitable for demanding industrial applications. The particularly small design with a diameter of only 36 mm predestines the rotary encoder for use in applications with limited installation space. Thanks to the IO-Link and SSI interfaces, it is ready for Industry 4.0 and ideally suited for point-to-point communication in automation networks. Profile WH3650M: - absolute wear-free magnetic encoder - Multiturn without gearbox and without battery - Interface SSI, IO-Link - extremely compact and very robust design - IP67 protection class - extensive temperature range -40 … 85° C - optimal price-performance ratio - Industry 4.0 ready
