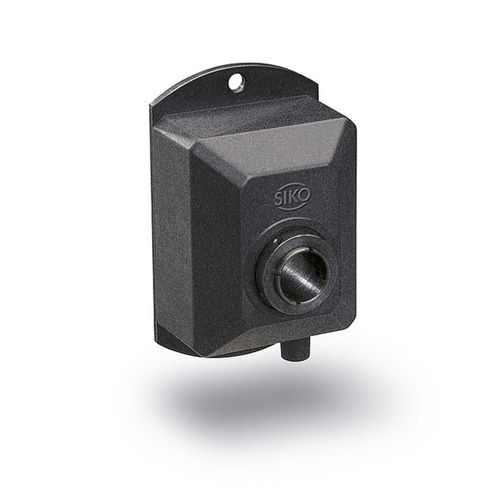

Incremental rotary encoder IG06

opticalhollow-shaftplastic

Incremental encoder IG06 Sturdy plastic housing with through hollow shaft The IG06 incremental encoder features a low-cost design with through hollow shaft and can be mounted easily. Profile IG06: Resolutions of max. 1024 pulses/revolution Housing made of impact-resistant plastic Low-cost version Feature - Technical data - Additional information Shaft - blaoc-finshed Steel - Housing - reinforced plastic - Speed - 5600 rpm - W01 shaft design - 56000 rpm - W02. W04 shaft design Moment of inertia - -10.5 x 10-6 kgm2 - W01 shaft design - -9.5 x lO^kgm2 - W02 shaft design - -9 x 10-6 kgm2 - W04 shaft design Starting torque - 515 Ncm at 20 5C - W01 shaft design - 51.5 Ncm at 20 =C - W02. W04 shaft design Shaft load rating - 10 N axial - W01 shaft design - 20 N radial - W01 shaft design - 25 N axial - W02. W04 shaft design - 50 N radial - W02. W04 shaft design Cable sheath - PVC or PUR - Weight - -0.14 kg - Electrical data - - ■ PP output circuit - - Feature - Technical data - Additional information Operating voltage - 10 ... 30 V OC - reverse polarity protected Current consumption - typical <50 mA - without load {AB0 output signais) Output signal level high - UB -2 V. at 20 mA - Output signal level low - 51 V at 20 mA - Puise frequency - 525 kHz - Phasing - 90= ±30 = - Load - ±40 mA short-circuit proof - max. adm.
