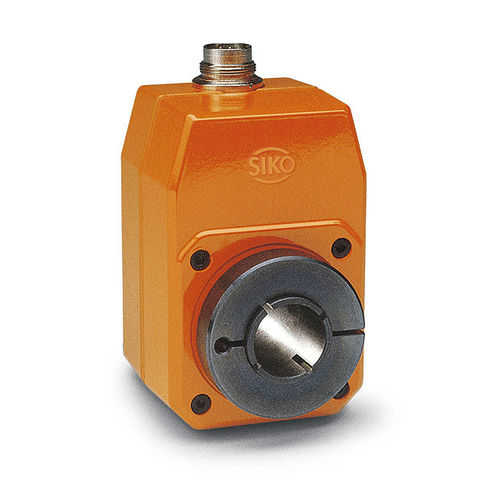

Incremental rotary encoder IG07
opticalhollow-shaftrobust

incremental rotary encoder
incremental rotary encoder
incremental rotary encoder
Add to favorites
Compare this product


Characteristics

Type
incremental
Technology
optical
Construction
hollow-shaft
Protection level
robust
Housing diameter

20 mm (1 in)

Description

Incremental encoder IG07 Housing made of zinc die-cast with through hollow shaft The IG07 is a robust incremental encoder with through hollow shaft, which is nearly indestructible even under the harshest ambient conditions. Profile IG07: Resolutions of max. 1024 pulses/revolution Through hollow shafts up to ø20 mm Housing made of zinc die-cast High shaft load rating, radial 5600 N, axial 1400 N Feature - Technical data - Additional information Shaft - blacx-finshed Steel - Housing - zinc, die-cast - Speed - £6000 rpm - IP64 - £3000 rpm - IP65 Moment of inertia - -28.5 x 10-6 kgm2 - W01 shaft design - -58.5 x 10"6 kgm2 - W02 shaft design Starting torque - £6 N cm at 20 =C - IP64 - £10 N cm at 20 5C - IP65 Shaft load rating - 1400 N axial - - 5600 N radial - Cable sheath - PVC - Weight - -0.75 kg - Electrical data - - ■ PP output circuit Feature - Technical data - Additional information Operating voltage - 10 ... 30 V DC - reverse polarity protected Current consumption - typical <40 mA - without load (AB0 output signais) Output signal level high - UB-2 V - Output signal level low - £1 V at 40 mA - Puise frequency - £80 kHz - Phasing - 90= ±30 = - Load - ±40 mA short-circuit proof - max. adm. ■ OP output circuit Feature - Technical data - Additional information Operating voltage - 10 ... 30 V DC - reverse polarity protected Current consumption - typically <40 mA - without load (AB0 output signais) Output signal level high - UB-2 V - Output signal level low - £1 V at 40 mA - Puise frequency - £80 kHz - Phasing - 90= ±30 = - Load - ±40 mA short-drcuit-proof - max. adm. ■ LD output circuit Feature - Technical data - Additional information Operating voltage - 5 V DC ±5 % - without reverse polarity protection Current consumption - typically <40 mA - without load {AB0 output signais)
