1-axis accelerometer 2270 series

MEMSwith analog output

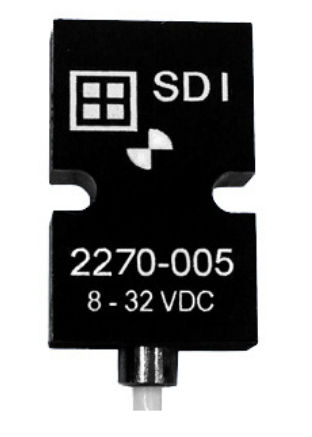

DESCRIPTION The model 2270 accelerometer module is a higher performance and wider temperature range version of the model 2260. It combines an integrated SDI low noise accelerometer with high drive, low impedance buffering for measuring acceleration in commercial/industrial environments. It is tailored for zero to medium frequency instrumentation applications. The anodized aluminum case is epoxy sealed and is easily mounted via two #4 (or M3) screws. On-board regulation is provided to minimize the effects of supply voltage variation. It is relatively insensitive to temperature changes and gradients. The cable's shield is electrically connected to the case while the ground (GND) wire is isolated from the case. An initial calibration sheet (2270-CAL) is included and periodic calibration checking is also available.
