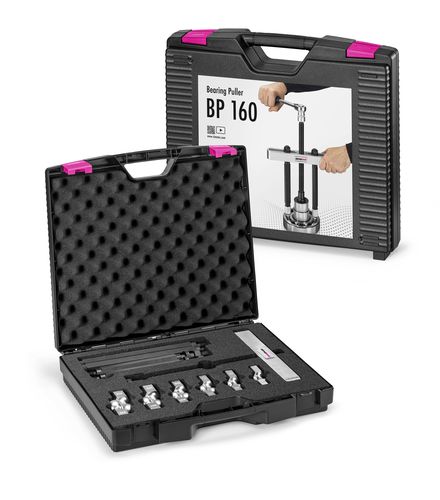

Manual bearing puller simatool BP 160

two-arminternal

Removal of deep groove ball bearings from the shaft and from the housing The ideal solution for removing deep groove ball bearings from the shaft and housing The BP 160 Bearing Puller enables the professional removal of deep groove ball bearings. Sealed bearings can also be removed after the corresponding seal has been removed. The ball adapters of the pull rod are inserted in the bearing race and then rotated by 90 degrees to ensure a secure hold. The BP 160 Bearing Puller makes it possible to remove more than 50 different deep groove ball bearings, with an inner diameter of 30 to 160 mm. With the help of extensions, even hard-to-reach bearings can be easily expanded. A bearing selection table is enclosed in the tool case. The removal tool BP 160 is suitable for the removal of deep groove ball bearings, from the shaft and from the housing. Professional removal of deep groove ball bearings Adjacent parts do not need to be removed or dismantled An ideal addition to the simatool B P 61 Bearing Puller For deep groove ball bearings with an inner diameter of 30 to 160 mm All components are available as spare parts Quick and safe selection through labelling of the bearing adapters Pulling off ball bearings without removing the shaft Mechanical pressure spindle designed for high removal forces Application areas of the BP 160 Mechanical engineering industry Factory maintenance Electric motor maintenance (link to Elektromotorenblog article) Materials Handling Textile industries Metalworking industry Construction machinery Agricultural machinery Automotive industry Recycling industry Cement industry Cableways/mountain railways
