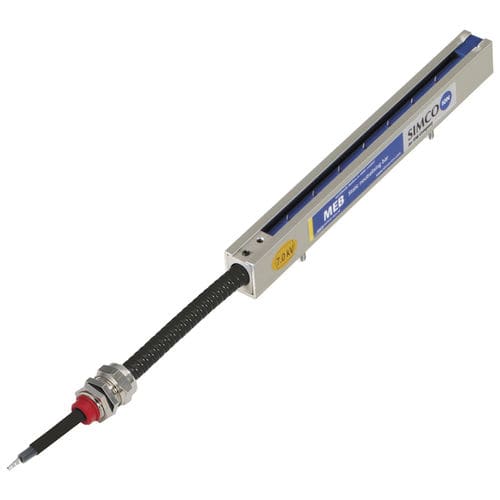

Anti-static anti-static bar MEB

MEB anti-static bars are often used on production machines were short range ionisation is possible and where no moving machine parts are interfering the ionisation. Each individual emitter point of this rectangular anti-static bar is coupled capacitively to the high voltage. You will there fore not get an electrical shock when the point is accidentally touched. Another advantage is that the bar continues to function properly when a number of points are short-circuited, for instance due to heavy fouling. Short range Compact UL certified Up to 6 m length Short working distance: 30 mm Shockless touchable emitters The bar continues to function properly when a number of emitter pins are short-circuited, for instance due to heavy fouling. Compact Complementary equipment: A2A7S/MPM Working distance 30 mm max. Housing material Anodised aluminum Inner bar matarial PVC Emitter pins Special alloy Cable Metal shielded Weight 0,56 kg/m Ambient temperature 0 - 55 °C Use circumstances Industrial Operating voltage 7 kV AC Options Right angle cable exit Airsupport Suitable power unit A2A7S / MPM Approval UL
